High Mast Lighting Design Calculation

Q: What Goes Into Successful High Mast Lighting Design?

A high mast lighting design considers pole height , fixture placement , light distribution patterns , and site-specific requirements . We analyze existing infrastructure, recommend optimal pole locations, and determine the ideal number of fixtures per pole. Key factors include current lighting type, target light levels, and any municipal or safety specifications. Using CAD drawings or aerial site images, our design provides a visual footcandle analysis showing balanced illumination across your entire area.

Q: What Are The Recommended Light Levels For High Mast Lighting Systems?

High mast lighting prioritizes uniform coverage over peak brightness across large areas. We typically target 1-5 footcandles average with 3:1 to 4:1 uniformity ratios. Industrial yards often require 2-3 footcandles, while security applications may need 5+ footcandles in critical zones.

Q: How Do You Calculate LED High Mast Lighting Requirements?

We use AGI32 professional lighting software to model your exact site conditions. This software calculates precise footcandle distribution , accounts for pole shadows, and shows uniformity ratios. The calculations include lumen output , mounting height , and beam angles to ensure optimal coverage for both outdoor and indoor applications.

Q: How Do You Design A High Mast Lighting Solution?

We start with a comprehensive lighting plan that models your specific area and requirements. Our design process includes site analysis , fixture selection , and pole placement optimization . We can model single-pole coverage or complex multi-pole installations to show exact light distribution patterns across your facility.

Q: How Can I Replace Metal Halide With LED High Mast Lighting And Maintain Light Levels?

Request our free LED high mast lighting plan for guaranteed results. We calculate exact footcandle levels and uniformity ratios, ensuring your new LED system meets or exceeds current performance. Our lighting plans cover diverse applications, including shipyards , rail yards, storage facilities , prison yards , and power plants .

Q: Why Choose LED High Mast Lighting Over Traditional Systems?

LED high mast fixtures deliver 60-80% energy savings compared to metal halide and high-pressure sodium systems. They provide 50,000+ hours of lifespan , instant-on capability, and superior light quality. LED systems eliminate frequent lamp changes and ballast maintenance, reducing operational costs significantly while meeting all illumination standards.

Q: How Much Does A High Mast Lighting Design Cost?

We provide complimentary lighting plans for qualified projects to help you make informed decisions. Professional photometric analysis includes 3D modeling , footcandle calculations , and fixture specifications . This investment eliminates guesswork and ensures your lighting system performs exactly as planned before installation.

Q: What Information Do You Need To Create A High Mast Lighting Plan?

We need your site dimensions , existing pole locations (if applicable), target light levels , and any local code requirements. A CAD drawing, aerial photo, or detailed site sketch helps us create accurate models. We also consider operational hours , security needs , and budget constraints in our recommendations.

Q: How Does A Lighting Plan Help With My High Mast Project Approval?

Professional lighting plans provide technical documentation that satisfies engineering reviews, municipal approvals, and stakeholder requirements. The photometric data demonstrates code compliance , safety standards , and performance guarantees . Many contractors and facility managers use our plans to secure project funding and expedite approval processes.

Get Your Custom Lighting Plan With Product Recommendations

Includes up to 8% off the price of our recommended lighting products

What to Expect When Requesting a Lighting Plan

A Lighting Expert Reviews Your Request

We Follow Up to Gather Project Details

Custom Lighting Plan With Product Recommendations is Created

Review and Approve Your Lighting Design

Purchase the Recommended Products

Our Customers

CBRE needed high quality lighting for their customer, with stock available for ongoing projects.

Customer had an urgent need for high temperature lights. We had them in stock & shipped out next day.

Poor lighting caused parking lot safety issues for spectators. Our lighting plan & new lights resulted in an improved experience.

Customer needed to source large quantities of specialty fixtures for use in their manufactured products.

Tracy Electric was seeking a reliable source for ongoing lighting projects.

Distributors partner with us to provide customers a high quality product at a reasonable price.

Repeat lighting supplier for an electrical contractor working in manufacturing facilities.

Permanent tent lighting for large acrobatics facility. Our lighting plan & recommendations resulted in ideal performer & spectator safety.

Frequently Asked Questions

What Goes Into Successful High Mast Lighting Design?

A high mast lighting design considers pole height, fixture placement, light distribution patterns, and site-specific requirements. We analyze existing infrastructure, recommend optimal pole locations, and determine the ideal number of fixtures per pole. Key factors include current lighting type, target light levels, and any municipal or safety specifications. Using CAD drawings or aerial site images, our design provides a visual footcandle analysis showing balanced illumination across your entire area.

Best Sellers: LED High Mast Lights

What Are The Recommended Light Levels For High Mast Lighting Systems?

High mast lighting prioritizes uniform coverage over peak brightness across large areas. We typically target 1-5 footcandles average with 3:1 to 4:1 uniformity ratios. Industrial yards often require 2-3 footcandles, while security applications may need 5+ footcandles in critical zones.

How Do You Calculate LED High Mast Lighting Requirements?

We use AGI32 professional lighting software to model your exact site conditions. This software calculates precise footcandle distribution, accounts for pole shadows, and shows uniformity ratios. The calculations include lumen output, mounting height, and beam angles to ensure optimal coverage for both outdoor and indoor applications.

How Do You Design A High Mast Lighting Solution?

We start with a comprehensive lighting plan that models your specific area and requirements. Our design process includes site analysis, fixture selection, and pole placement optimization. We can model single-pole coverage or complex multi-pole installations to show exact light distribution patterns across your facility.

How Can I Replace Metal Halide With LED High Mast Lighting And Maintain Light Levels?

Request our free LED high mast lighting plan for guaranteed results. We calculate exact footcandle levels and uniformity ratios, ensuring your new LED system meets or exceeds current performance. Our lighting plans cover diverse applications, including shipyards, rail yards, storage facilities, prison yards, and power plants.

Why Choose LED High Mast Lighting Over Traditional Systems?

LED high mast fixtures deliver 60-80% energy savings compared to metal halide and high-pressure sodium systems. They provide 50,000+ hours of lifespan, instant-on capability, and superior light quality. LED systems eliminate frequent lamp changes and ballast maintenance, reducing operational costs significantly while meeting all illumination standards.

How Much Does A High Mast Lighting Design Cost?

We provide complimentary lighting plans for qualified projects to help you make informed decisions. Professional photometric analysis includes 3D modeling, footcandle calculations, and fixture specifications. This investment eliminates guesswork and ensures your lighting system performs exactly as planned before installation.

What Information Do You Need To Create A High Mast Lighting Plan?

We need your site dimensions, existing pole locations (if applicable), target light levels, and any local code requirements. A CAD drawing, aerial photo, or detailed site sketch helps us create accurate models. We also consider operational hours, security needs, and budget constraints in our recommendations.

How Does A Lighting Plan Help With My High Mast Project Approval?

Professional lighting plans provide technical documentation that satisfies engineering reviews, municipal approvals, and stakeholder requirements. The photometric data demonstrates code compliance, safety standards, and performance guarantees. Many contractors and facility managers use our plans to secure project funding and expedite approval processes.

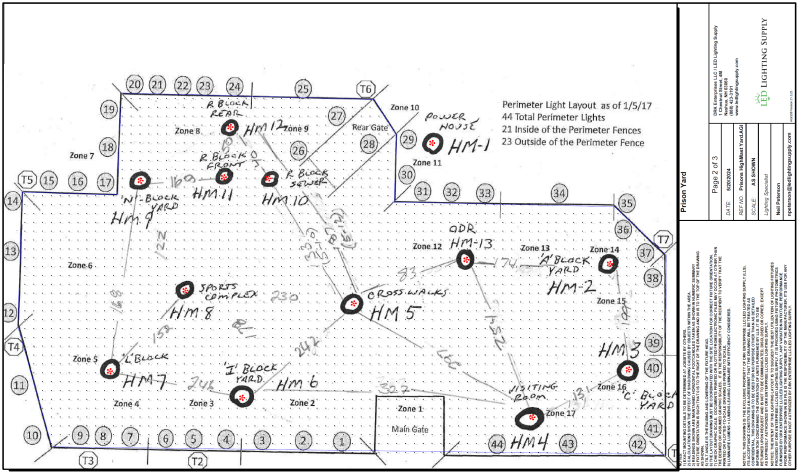

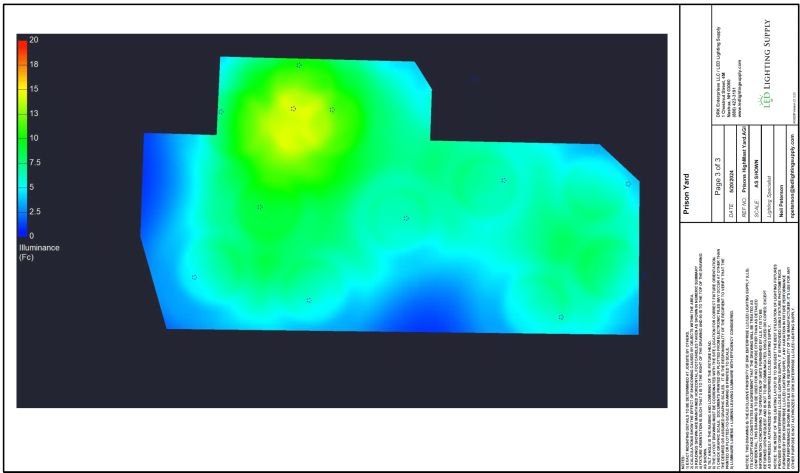

Sample LED High Mast Lighting Plans and Heat Map
