Shipyard Lighting Design

Q: What are the Key Considerations for Lighting Design in Shipyards and Container Ports?

Safety : Adequate illumination minimizes accident risk and provides clear visibility for workers navigating heavy machinery areas. Security : Proper lighting deters unauthorized access and enables surveillance systems to function effectively in entry points and restricted zones. Energy Efficiency : LED technology delivers up to 70% energy savings compared to traditional lighting, crucial for large-scale operations. Environmental Durability : Fixtures must withstand saltwater exposure, vibrations, and extreme temperatures with corrosion-resistant construction .

Q: What are the Typical Lighting Standards for Shipyards and Container Ports?

Illumination levels typically range from 20 to 50 foot candles depending on the operational area. Key areas such as berthing docks require 30-50 foot candles , while general storage yards need 20-30 foot candles . Loading and unloading zones demand higher illumination levels for enhanced safety and productivity during 24-hour operations .

Q: How is Lighting Design Calculated for Shipyards and Container Ports?

We use professional lighting design software such as AGI32 to model your facility environment and determine optimal fixture placement. The software calculates precise lighting levels and ensures uniform illumination throughout the area. By analyzing mounting heights, fixture types, and light distribution patterns , we create an efficient lighting plan that meets all operational requirements.

Q: Can We Replace Our Existing Lighting with LED?

Yes, we typically perform a one-for-one light swap replacement with LED fixtures. We verify the optimal LED fixtures by creating a detailed lighting plan that shows you exactly how bright and balanced your lighting will be. Our lighting analysis ensures you maintain or improve current illumination levels while reducing energy consumption by up to 70% .

Q: How Much Can We Save with LED Lighting Upgrades?

Most shipyards and container ports achieve 60-70% energy savings after LED conversion. With 50,000+ hour lifespans , LED fixtures reduce maintenance costs by up to 80%. We provide detailed ROI calculations in our lighting plans showing exact payback periods, typically ranging from 18-36 months depending on current energy costs and operating hours.

Q: What Information Do You Need to Create Our Lighting Plan?

We need your facility's CAD drawings or site dimensions , current fixture locations, and operational requirements for each zone. Our team also requires information about mounting heights , existing electrical infrastructure, and specific work activities. We can conduct a site survey to gather precise measurements and assess current lighting performance for optimal design recommendations.

Q: How Long Does the Lighting Design Process Take?

Our lighting design process typically takes 3-5 days for standard shipyard and container port projects. Complex facilities with multiple operational zones may require 2-3 weeks for comprehensive analysis. We deliver detailed photometric reports showing foot candle measurements, fixture specifications, and energy savings calculations to support your investment decision.

Q: Do LED Fixtures Work in Marine Environments with Salt Air Exposure?

Yes, we specify marine-grade LED fixtures with IP65 or IP66 ratings designed specifically for saltwater environments. These fixtures feature corrosion-resistant housings and sealed construction to prevent moisture intrusion. Marine-rated LEDs maintain performance in temperatures from -40°F to 140°F and include surge protection for reliable operation during storms.

Get Your Custom Lighting Plan With Product Recommendations

Includes up to 8% off the price of our recommended lighting products

What to Expect When Requesting a Lighting Plan

A Lighting Expert Reviews Your Request

We Follow Up to Gather Project Details

Custom Lighting Plan With Product Recommendations is Created

Review and Approve Your Lighting Design

Purchase the Recommended Products

Our Customers

CBRE needed high quality lighting for their customer, with stock available for ongoing projects.

Customer had an urgent need for high temperature lights. We had them in stock & shipped out next day.

Poor lighting caused parking lot safety issues for spectators. Our lighting plan & new lights resulted in an improved experience.

Customer needed to source large quantities of specialty fixtures for use in their manufactured products.

Tracy Electric was seeking a reliable source for ongoing lighting projects.

Distributors partner with us to provide customers a high quality product at a reasonable price.

Repeat lighting supplier for an electrical contractor working in manufacturing facilities.

Permanent tent lighting for large acrobatics facility. Our lighting plan & recommendations resulted in ideal performer & spectator safety.

Frequently Asked Questions

What is Lighting Design for a Shipyard or Container Port?

Lighting Design for a Shipyard or Container Port involves the strategic placement of LED shipyard lighting fixtures in these industrial, hazardous environments. We analyze your facility layout to ensure optimal visibility and safety compliance. The lighting design process includes selecting appropriate fixtures and calculating precise foot candle requirements for balanced illumination across all operational zones.

Best Sellers: LED High Mast Lights

What are the Key Considerations for Lighting Design in Shipyards and Container Ports?

Safety: Adequate illumination minimizes accident risk and provides clear visibility for workers navigating heavy machinery areas.
Security: Proper lighting deters unauthorized access and enables surveillance systems to function effectively in entry points and restricted zones.
Energy Efficiency: LED technology delivers up to 70% energy savings compared to traditional lighting, crucial for large-scale operations.
Environmental Durability: Fixtures must withstand saltwater exposure, vibrations, and extreme temperatures with corrosion-resistant construction.

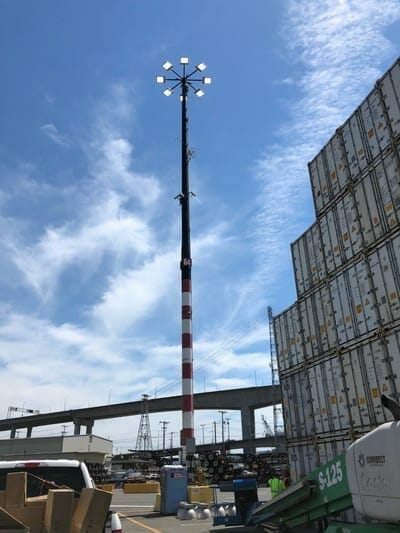

High Mast Port Lights

What are the Typical Lighting Standards for Shipyards and Container Ports?

Illumination levels typically range from 20 to 50 foot candles, depending on the operational area. Key areas such as berthing docks require 30-50 foot candles, while general storage yards need 20-30 foot candles. Loading and unloading zones demand higher illumination levels for enhanced safety and productivity during 24-hour operations.

How is Lighting Design Calculated for Shipyards and Container Ports?

We use professional lighting design software such as AGI32 to model your facility environment and determine optimal fixture placement. The software calculates precise lighting levels and ensures uniform illumination throughout the area. By analyzing mounting heights, fixture types, and light distribution patterns, we create an efficient lighting plan that meets all operational requirements.

Can We Replace Our Existing Lighting with LED?

Yes, we typically perform a one-for-one light swap replacement with LED fixtures. We verify the optimal LED fixtures by creating a detailed lighting plan that shows you exactly how bright and balanced your lighting will be. Our lighting analysis ensures you maintain or improve current illumination levels while reducing energy consumption by up to 70%.

What are the Benefits of LED Lighting in Shipyards and Container Ports?

LED lighting offers several advantages in shipyard and container port environments:

Energy Efficiency: LED lights consume significantly less energy than traditional lighting sources, leading to reduced energy costs and lower environmental impact.
Longevity: LEDs have a longer lifespan compared to conventional lighting options, resulting in reduced maintenance requirements and increased operational efficiency.
Durability: LED fixtures are resistant to vibrations, shocks, and extreme weather conditions, making them highly suitable for shipyards and container ports.
Instant On/Off: LED lights provide instant illumination, eliminating the warm-up time associated with traditional lighting technologies.
Enhanced Visibility: LEDs offer high-quality, clear illumination, improving visibility and safety for workers, equipment operators, and personnel navigating the shipyard or container port.

How Much Can We Save with LED Lighting Upgrades?

Most shipyards and container ports achieve 60-70% energy savings after LED conversion. With 50,000+ hour lifespans, LED fixtures reduce maintenance costs by up to 80%. We provide detailed ROI calculations in our lighting plans showing exact payback periods, typically ranging from 18-36 months, depending on current energy costs and operating hours.

What Information Do You Need to Create Our Lighting Plan?

We need your facility’s CAD drawings or site dimensions, current fixture locations, and operational requirements for each zone. Our team also requires information about mounting heights, existing electrical infrastructure, and specific work activities. We can conduct a site survey to gather precise measurements and assess current lighting performance for optimal design recommendations.

How Long Does the Lighting Design Process Take?

Our lighting design process typically takes 3-5 days for standard shipyard and container port projects. Complex facilities with multiple operational zones may require 2-3 weeks for comprehensive analysis. We deliver detailed photometric reports showing foot candle measurements, fixture specifications, and energy savings calculations to support your investment decision.

Do LED Fixtures Work in Marine Environments with Salt Air Exposure?

Yes, we specify marine-grade LED fixtures with IP65 or IP66 ratings designed specifically for saltwater environments. These fixtures feature corrosion-resistant housings and sealed construction to prevent moisture intrusion. Marine-rated LEDs maintain performance in temperatures from -40°F to 140°F and include surge protection for reliable operation during storms.

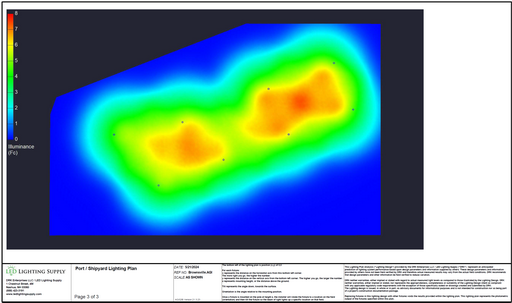

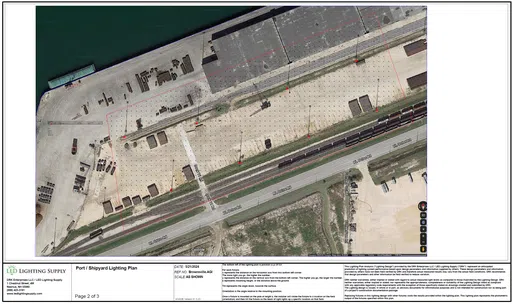

Sample Shipyard Lighting Plan and Heat Map
