LED Wall Packs

Q: How Much Energy Do LED Wall Packs Save Compared to Traditional Fixtures?

LED wall packs deliver 50-80% energy reduction compared to traditional metal halide or high-pressure sodium fixtures. Replacing twenty 400-watt metal halide fixtures with 150-watt LED wall packs saves $2,847 annually in energy costs at $0.13 per kWh. Over the LED's 20-year lifespan, total energy savings reach $57,154 with an additional $8,000 in maintenance cost savings.

Q: What Is the Difference Between Full Cutoff and Forward Throw Wall Packs?

Full cutoff wall packs direct all light downward to minimize light pollution and meet dark sky compliance requirements, making them ideal for facade lighting and environmentally sensitive areas. Forward throw wall packs distribute light both downward and outward for maximum coverage, providing superior security lighting and wide-area illumination. Semi-cutoff designs blend both approaches, reducing light pollution by approximately 50% while maintaining some forward projection.

Q: What Wattage LED Wall Pack Do I Need?

Most commercial applications require 50-watt to 100-watt LED wall packs for standard security and pathway lighting. A 60-watt LED wall pack produces approximately 7,900 lumens and replaces a 175-watt metal halide fixture, while a 100-watt LED replaces 250-watt traditional fixtures. Many wall packs feature toggle-adjustable wattage settings, allowing you to customize output from 50W/75W/100W after installation based on actual lighting needs.

Q: How Long Do LED Wall Pack Lights Last?

Commercial-grade LED wall packs typically last 20+ years with minimal maintenance requirements. Unlike traditional fixtures that require bulb replacements every 1-2 years and ballast changes every 5-7 years, LED wall packs provide consistent light output throughout their lifespan. Most fixtures include 5-year warranties with USA-based support, and the robust construction withstands extreme weather conditions and temperature fluctuations.

Q: What Color Temperature Should I Choose for LED Wall Packs?

5000K color temperature remains the most popular choice for LED wall packs, providing crisp white light that enhances security visibility and effectively replaces metal halide fixtures. 4000K offers a slightly warmer white light suitable for areas transitioning from fluorescent lighting. Many fixtures feature toggle-adjustable color temperature selection, allowing you to choose between 3000K, 4000K, and 5000K after installation.

Q: Do LED Wall Packs Work With Motion Sensors and Photocells?

Many LED wall packs include integrated motion sensors for additional energy savings and automatic security activation. Dusk-to-dawn photocells ensure fixtures turn on automatically at sunset and off at sunrise without manual intervention. These controls can reduce energy consumption by an additional 30-50% in low-traffic areas while maintaining security lighting when needed.

Q: What Certifications Should LED Wall Packs Have?

Quality LED wall packs require UL Listed or ETL Listed certifications for electrical safety and code compliance. DLC Premium qualification ensures maximum utility rebate eligibility and demonstrates superior energy efficiency performance. IP65 ratings provide dust-tight and water-resistant protection for outdoor installations, while IK08 impact ratings ensure durability against mechanical damage.

Q: Can LED Wall Packs Be Dimmed?

Many LED wall packs support 0-10V dimming for additional energy savings and light level control. Toggle-adjustable fixtures allow wattage selection between multiple settings (typically 50W/75W/100W) without external dimming controls. Motion sensor-equipped fixtures automatically dim to 20-30% output during inactive periods and brighten to full output when motion is detected, maximizing both security effectiveness and energy efficiency.

By LED Lighting Supply

Achieve 50%-70% energy savings with UL Listed, DLC Premium fixtures
50,000+ hour rated lifespan eliminates frequent maintenance and replacements
Weather-resistant IP65 construction withstands extreme outdoor environmental conditions
Toggle-adjustable wattage and color temperature for installation flexibility

Browse Our LED Wall Packs

Our commitment to quality Our products are held to the highest standards for performance & reliability LED Lighting Supply Certification Stamp

LED wall pack lights deliver powerful, energy-efficient outdoor lighting solutions for commercial building exteriors, security applications, and pathway illumination. These wall-mounted fixtures replace traditional metal halide and high-pressure sodium systems while providing superior performance and reducing energy costs by 50-80%. LED Lighting Supply Wall Packs serve diverse commercial applications including warehouses, storage facilities, parking lots, loading docks, and building perimeters where reliable exterior lighting is essential. Property managers, facility operators, and contractors choose these fixtures for their versatility in providing both security illumination and general area lighting. Our wall pack collection features multiple distribution patterns including full cutoff designs for dark sky compliance, forward throw models for maximum coverage, and semi-cutoff options that balance light control with area coverage. Available in wattages from 15W to 150W, many fixtures include toggle-adjustable output settings and selectable color temperatures for installation flexibility. Enhanced features like built-in photocells enable automatic dusk-to-dawn operation, while motion sensor compatibility provides additional energy savings opportunities. These commercial-grade fixtures carry UL or ETL safety certifications with many DLC Premium qualified options for utility rebates. Backed by comprehensive 5-year warranties and USA-based support, our wall packs eliminate frequent maintenance requirements while delivering consistent, high-quality illumination that enhances security visibility and reduces operational costs for commercial properties.

Choosing the Best LED Wall Pack for Your Application

LED wall packs are wall-mounted outdoor lighting fixtures that provide high-quality, energy-efficient lighting for commercial and industrial applications. These outdoor lights are ideal to illuminate building exteriors, pathways, parking lots, and other outdoor spaces.

They are commonly used for security lighting. At LED Lighting Supply, we stock various LED wall packs in our U.S.-based warehouses.

With UL Listed or ETL Listed certifications and many DLC Premium options for utility rebates, our products meet stringent quality and safety standards. Many of our fixtures feature wattage and lumen toggle switch adjustability, allowing you to customize output after installation. Here's how to choose the right wall pack for your lighting needs.

The U.S. Department of Energy emphasizes that LED outdoor lighting systems can deliver significant energy savings compared to traditional technologies. According to DOE's LED lighting guidance, proper fixture selection and placement are critical factors in maximizing both energy efficiency and lighting performance in commercial outdoor applications.

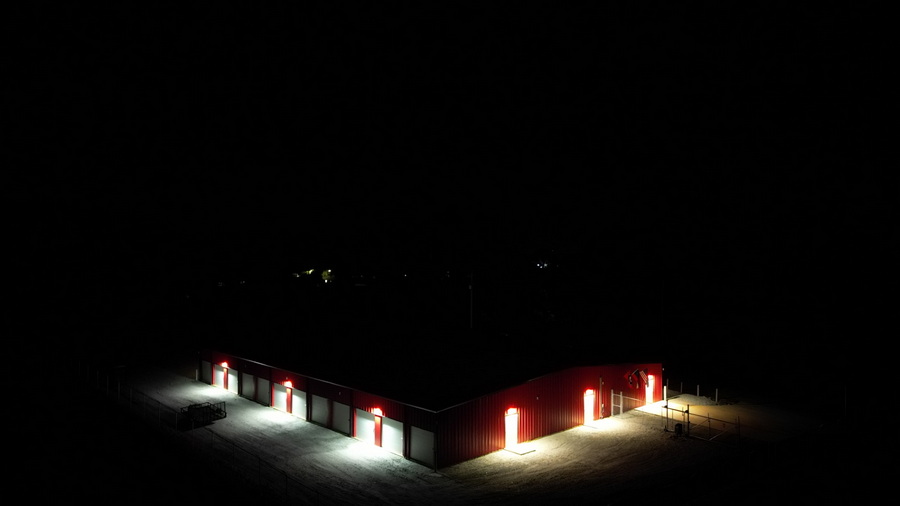

LED Lighting Supply Wall Packs mounted to building

Our wall pack lights were installed on the outside of this building to provide security lighting

Types of LED Lighting Supply Wall Packs

Understanding the types of wall packs available is the first step in selecting the right one:

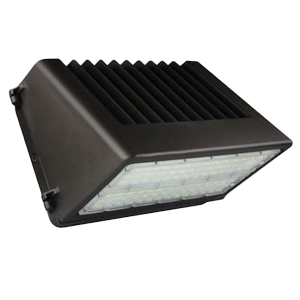

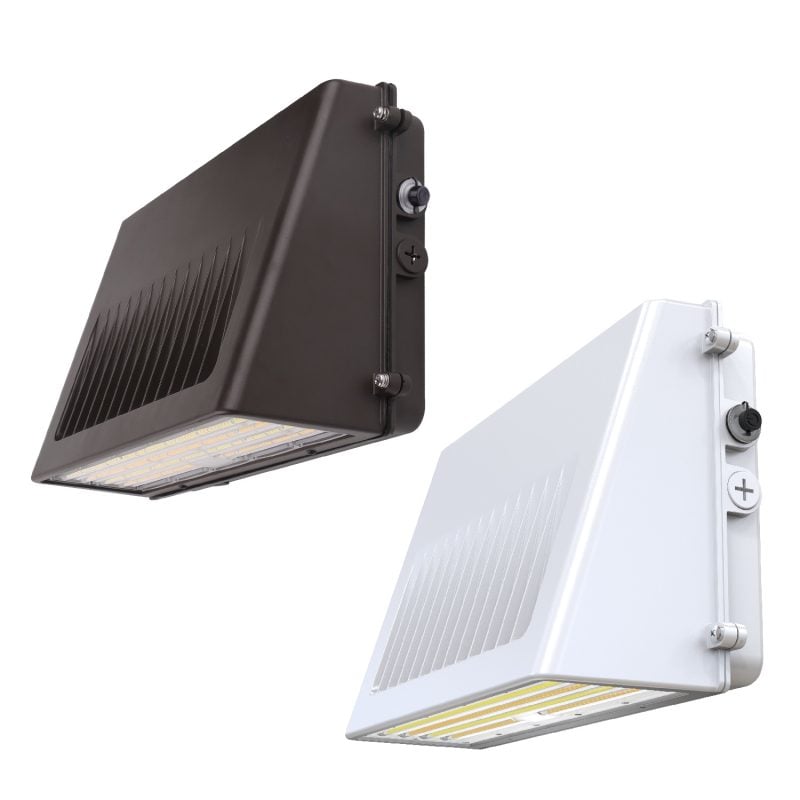

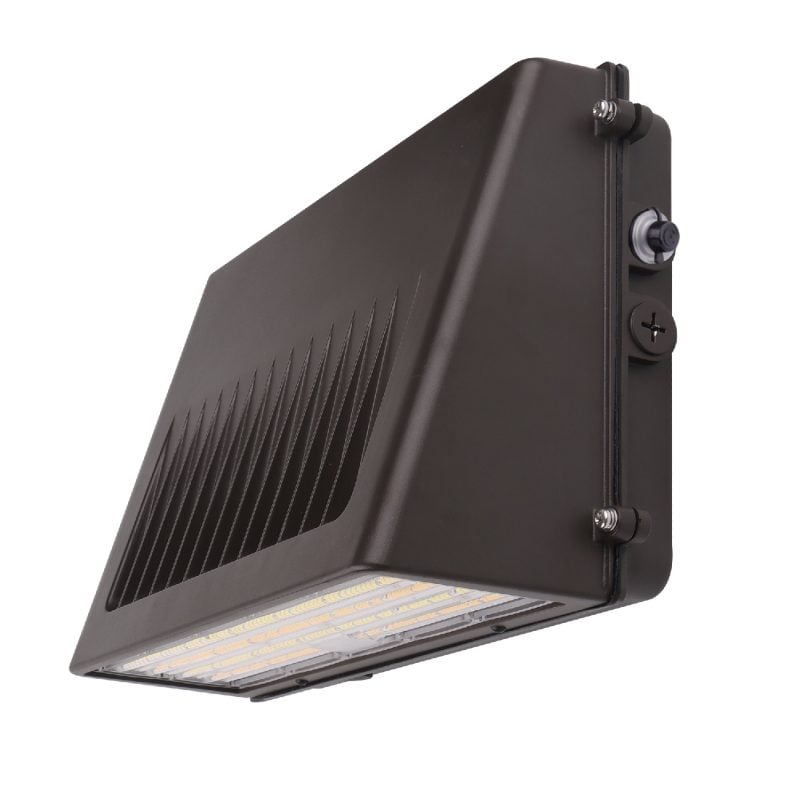

Full Cutoff Wall Packs	Direct all light downward to minimize light pollution. Ideal for dark-sky–compliant installations or locations where spill light onto neighboring properties must be avoided.

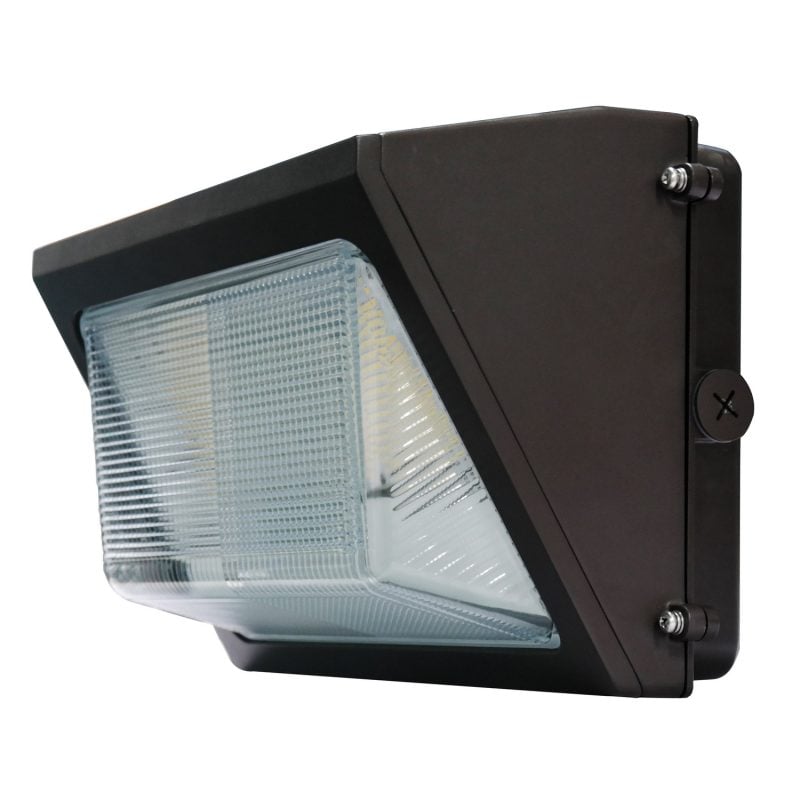

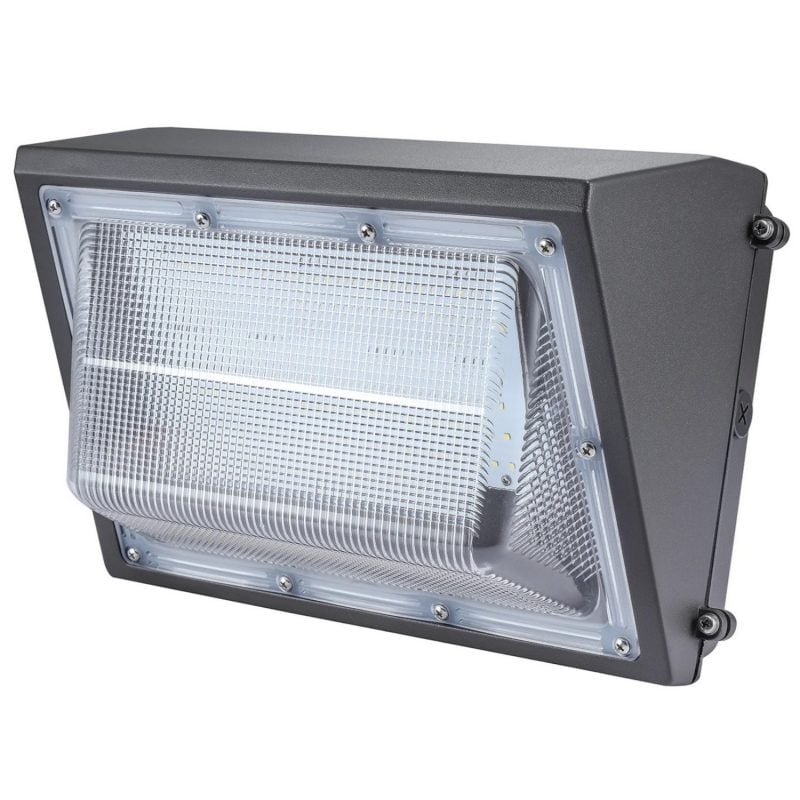

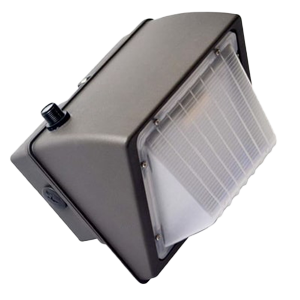

Non-Cutoff Wall Packs (Flood or Forward Throw)	Provide strong down-and-outward illumination for wide-area coverage. A common choice for building security lighting and general outdoor illumination.

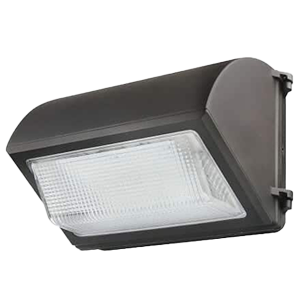

Semi-Cutoff Wall Packs	Balance full and non-cutoff performance by offering moderate forward throw while reducing light pollution by roughly 50%. Suitable for applications needing controlled yet effective coverage.

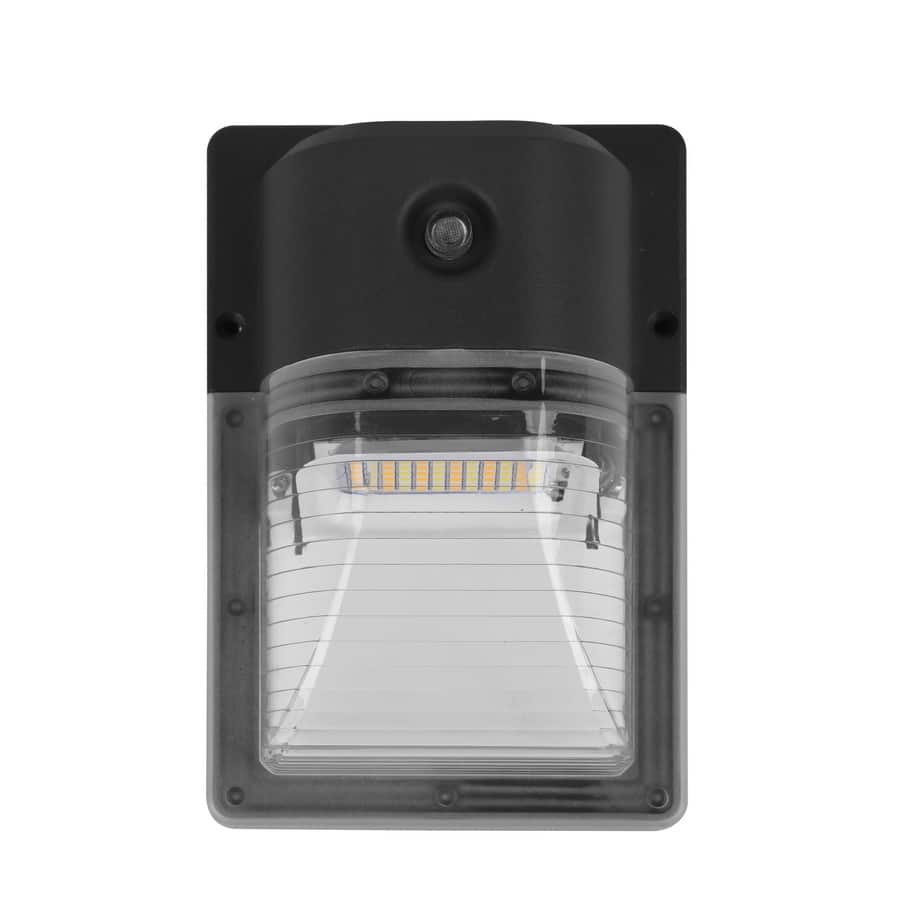

Dusk-to-Dawn LED Wall Packs	Include integrated photocells for automatic dusk-to-dawn operation, eliminating the need for manual switching or separate control systems.

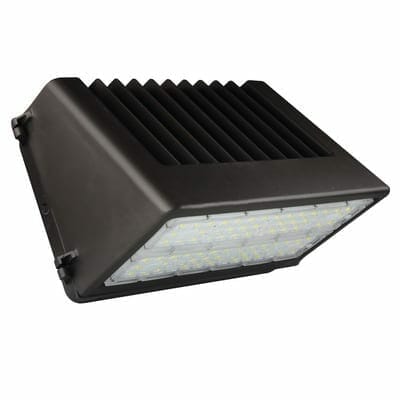

250W and 400W Equivalent High Output Wall Packs	High-performance LED replacements for 250W and 400W metal halide or high-pressure sodium wall packs, delivering equivalent-or superior-brightness with far lower energy usage.

The Illuminating Engineering Society provides detailed guidance on outdoor lighting distribution patterns and their appropriate applications. Their recommended practices for outdoor lighting help specifiers choose between full cutoff, semi-cutoff, and non-cutoff distributions based on site requirements and local ordinances.

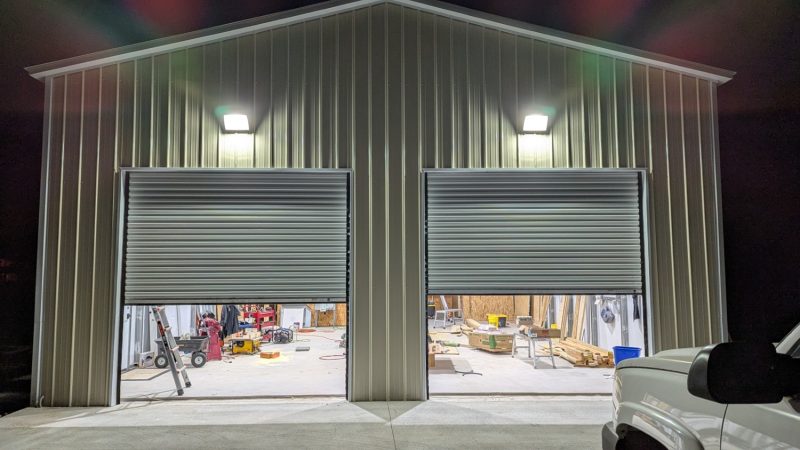

60 Watt Led Wall Packs Lighting Up The Outside Of A Workshop

Our customer installed these 60 Watt LED Wall Pack | 7928 Lumens Wall Packs on the front of their workshop.

What are the Benefits of Using LED Wall Packs?

Energy Savings	LED Lighting Supply wall packs will reduce energy usage by 50-80% compared to traditional wall packs.
Low Maintenance	Our LEDs provide years of reliable performance with minimal upkeep.
High-Quality Light	Our wall packs provide bright, even illumination, enhancing visibility and safety.
Instant Operation	Our wall packs turn on instantly without warm-up time. They work great in hot or cold temperatures.
Long Lifespan	Our durable commercial-grade construction ensures lasting performance and performs well in extreme climatic conditions.
Environmentally Friendly	Our LED wall packs do not contain mercury or other toxic materials when compared to traditional lighting.
Improved Security	Bright, uniform illumination helps eliminate dark zones around buildings, enhancing surveillance camera visibility and deterring unwanted activity.
Wide Voltage Compatibility	Universal drivers automatically accept 120-277V or 347-480V inputs, making installation simple across commercial and industrial systems.
Weather-Resistant Construction	Rugged housings with IP65 or higher ratings protect against rain, dust, and harsh environmental conditions, ensuring reliable outdoor performance.
Smart Controls Ready	Many models support photocells, motion sensors, and 0-10V dimming for added energy savings and automated nighttime security.
Easy Installation	Designed to retrofit existing wall pack footprints, reducing installation time and eliminating the need for costly rewiring.

What are the Best Applications for LED Wall Packs?

LED wall packs are a go-to solution for exterior wall lighting in various settings, including:

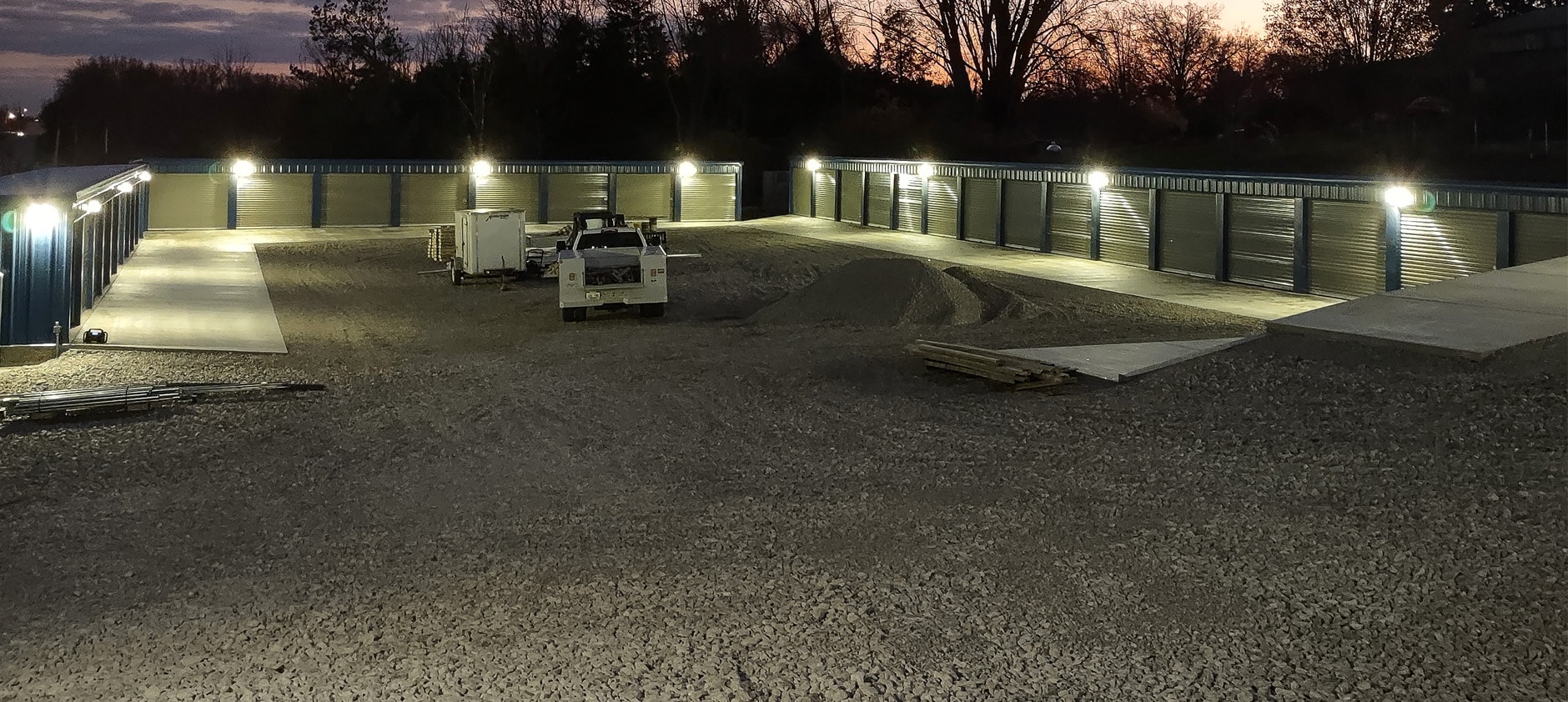

Outdoor Storage Facilities	Provide bright, reliable perimeter and unit lighting that boosts security and nighttime visibility.
Commercial Warehouses and Offices	Ensure safe navigation and clear visibility for employees, forklifts, and security personnel.
Building Facades & Pathways	Enhance exterior visibility and improve customer and employee safety around walkways and entrances.
Parking Lots & Garages	Deliver wide, uniform illumination that improves security and reduces liability risks.
Loading Docks & Industrial Zones	Support high-activity areas with consistent lighting that improves safety during shipping and receiving operations.
Building Perimeters & Entrances	Cost-effective security lighting that deters intruders and improves safety for nighttime visitors.
Manufacturing Facilities	Provide durable, high-output illumination for outdoor work areas, equipment access points, and perimeter security.
Distribution Centers	Improve nighttime operations and truck traffic flow with bright, uniform exterior lighting.
Retail Shopping Centers	Enhance customer safety and storefront visibility with reliable exterior and parking area illumination.
Hospitals & Healthcare Campuses	Provide safe, well-lit access for emergency vehicles, staff, and patients around building exteriors.
Schools & Universities	Illuminate campus walkways, parking areas, and building entrances to promote safety day and night.

OSHA emphasizes the importance of adequate lighting for workplace safety, particularly in outdoor industrial areas. Their guidelines on construction and industrial lighting standards specify minimum illumination levels for various work environments and safety-critical areas.

60 Watt Full Cutoff Wall Pack

This bank chose our full cutoff wall packs to provide pathway lighting. It also lit the building up nicely.

Energy Savings and Return on Investment

Our LED wall packs deliver substantial cost savings through reduced energy consumption. For example, replacing 20 traditional 400-watt metal halide fixtures with 150-watt LED wall packs, which operate 12 hours daily, provides impressive savings.

At $0.13 per kWh, the annual energy savings total $2,847, with total savings of $57,154 over the 20-year LED lifespan. This represents a 73% reduction in energy costs.

Maintenance cost savings add even more value. Over the LED fixture's lifespan, you'll save approximately $8,000 in maintenance costs for the same 20 fixtures. This includes elimination of bulb replacements, ballast changes, and associated labor costs.

Combined with energy savings, the total return on investment typically occurs in under 1 year.

The U.S. Department of Energy's Federal Energy Management Program has documented substantial energy savings from LED outdoor lighting retrofits. According to their LED retrofit case studies, commercial facilities typically achieve 50-75% energy reductions when replacing traditional outdoor fixtures with properly selected LED alternatives.

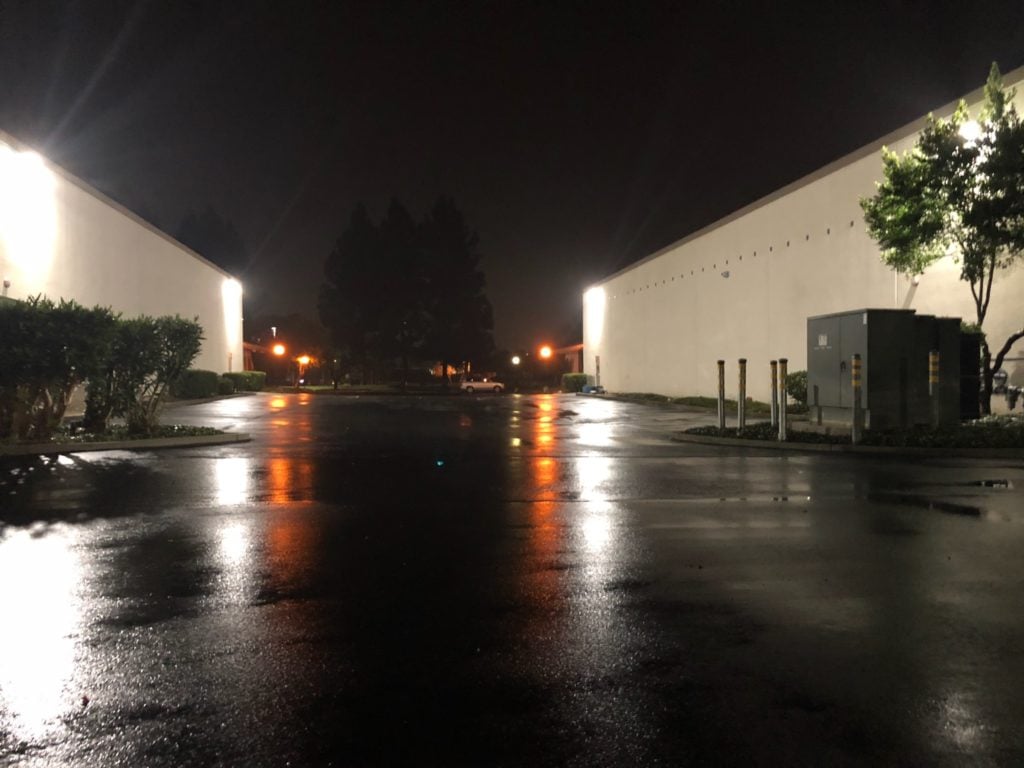

100 Watt Wall Pack Flood

Our customer replaced high-pressure sodium wall packs with our forward throw wall packs to provide additional security lighting for their installation.

Specifications and Available Options

Our wall packs are available in multiple wattages ranging from 15 watts to 150 watts, with many featuring toggle-adjustable wattage and lumen output. For color temperature, 5000K is our most popular choice and an excellent replacement for metal halide fixtures. 4000K works well for replacing fluorescent lighting. If you can't decide on color temperature, we offer toggle-adjustable fixtures that allow you to select the preferred color temperature after installation.

You can choose between forward throw (no light restriction), full cutoff, and semi-cutoff. Full cutoff is the best option for dark sky compliance and facade lighting, where forward throw is the best option for security lighting and pathway lighting. Semi-cutoff is a happy alternative to both of these combined.

Motion sensors provide additional energy savings opportunities, while photocells ensure lights turn on and off at appropriate times during the night. We carry all common mounting options for both indoor and outdoor fixtures and can match your existing mounting systems. Since LED fixtures reduce amp load compared to traditional lighting, there's no need to upgrade your electrical panel.

Certifications and Quality Standards

All our LED wall packs carry essential safety and performance certifications. UL Listed and ETL Listed certifications ensure electrical safety and code compliance. DLC Premium listing qualifies fixtures for maximum utility rebates and demonstrates superior energy efficiency. These certifications provide peace of mind and often reduce insurance costs while ensuring your installation meets all local building codes.

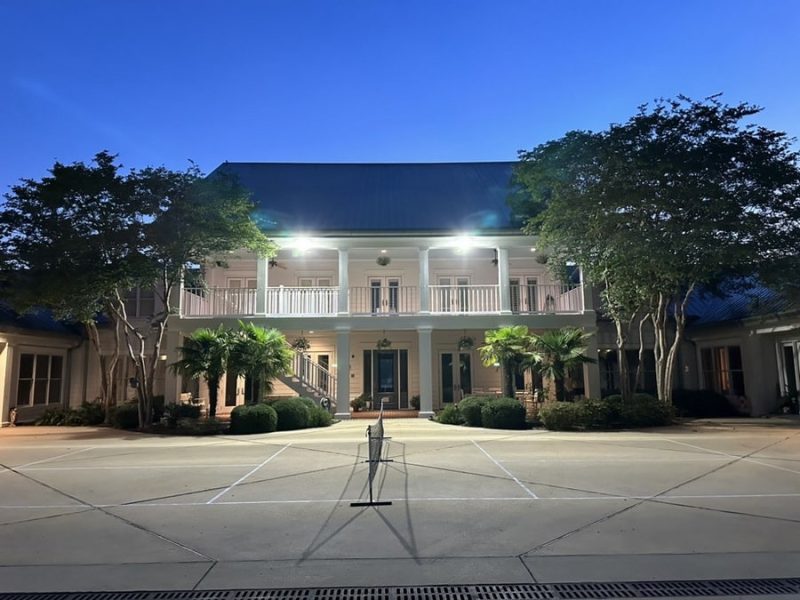

Mllg Ln Led Wpfl 100 Cc Pc Wall Pack Lighting

Our commercial customer installed our wattage-adjustable wall packs to light up their pickleball court.

Warranty and Support

All our LED wall packs come with at least a 5-year warranty, and all warranty support is based in the USA. We take customer support seriously, and helping you with any warranty claim is important to us. Our experienced support team understands the products we sell and can quickly resolve any issues that may arise during the warranty period.

Common Choices and Expert Recommendations

Based on our 17 years of experience, most customers choose 50-watt to 100-watt wall packs for standard commercial applications. Full cutoff designs are increasingly popular due to dark sky ordinances and energy efficiency requirements. 5000K color temperature remains the top choice for its crisp, bright white light that enhances security visibility.

Motion sensor integration is becoming standard for additional energy savings, while photocells ensure reliable automatic operation. Toggle-adjustable features are popular because they provide installation flexibility and future adaptability. Most customers appreciate being able to fine-tune light output and color temperature after seeing the fixture in operation.

Professional Lighting Design Support

Our lighting specialists bring 17 years of commercial lighting expertise to help you select the right wall pack configuration for your specific facility. We provide complimentary custom lighting plans that show optimal fixture placement and spacing for your building's unique layout. Our team calculates precise energy savings based on your current fixtures and local electricity rates to demonstrate your exact return on investment. This professional analysis eliminates guesswork and ensures proper lighting levels for security and safety requirements. Whether you're retrofitting an existing facility or planning new construction, our product specialists guide you through fixture selection, power requirements, wiring, and photometric data to achieve optimal results for the best value.

Common Mistakes and How to Avoid Them

After 17 years of commercial outdoor lighting installations, I see the same costly mistakes repeated across every industry. The most expensive errors happen during product selection and installation planning, when facilities assume all wall packs are the same or try to match previous fixture wattages.

Installing non-cutoff wall packs where full cutoff is required by local dark sky ordinances. Check municipal lighting codes before ordering to avoid forced fixture replacement after installation.
Choosing fixtures based on wattage instead of lumen output when replacing metal halide or HPS wall packs. Use photometric data to match actual light output requirements for your security and safety needs.
Overlooking voltage compatibility between existing wiring and new LED drivers. Verify your electrical system voltage before ordering to prevent costly rewiring or incompatible driver issues.
Mounting full cutoff wall packs too high for effective ground illumination. Install between 12-16 feet for optimal security lighting coverage without creating dark zones directly below the fixture.
Failing to account for existing photocell or motion sensor wiring when selecting fixtures with integrated controls. Plan control integration during fixture selection to avoid double controls or wiring conflicts.
Installing forward throw wall packs too close to neighboring properties without considering light trespass complaints. Use IES light trespass guidelines to position fixtures appropriately for your site boundaries.
Selecting fixtures without adequate IP ratings for local weather conditions. Choose IP65 minimum for standard outdoor installations, IP66 for coastal or severe weather environments.
Ignoring existing mounting patterns when retrofitting old fixtures. Measure bolt patterns and junction box locations before ordering to ensure proper fit and avoid additional installation costs.

LED Wall Packs Frequently Asked Questions

What Is an LED Wall Pack Light?

LED wall packs are wall-mounted outdoor lighting fixtures that provide energy-efficient illumination for commercial and industrial building exteriors, pathways, parking lots, and security applications. These fixtures mount directly to exterior walls and replace traditional metal halide or high-pressure sodium wall packs with 50-80% energy savings. Most LED wall packs feature IP65 ratings for weather resistance and operate effectively in extreme temperature locations.

How Much Energy Do LED Wall Packs Save Compared to Traditional Fixtures?

LED wall packs deliver 50-80% energy reduction compared to traditional metal halide or high-pressure sodium fixtures. Replacing twenty 400-watt metal halide fixtures with 150-watt LED wall packs saves $2,847 annually in energy costs at $0.13 per kWh. Over the LED's 20-year lifespan, total energy savings reach $57,154 with an additional $8,000 in maintenance cost savings.

What Is the Difference Between Full Cutoff and Forward Throw Wall Packs?

Full cutoff wall packs direct all light downward to minimize light pollution and meet dark sky compliance requirements, making them ideal for facade lighting and environmentally sensitive areas. Forward throw wall packs distribute light both downward and outward for maximum coverage, providing superior security lighting and wide-area illumination. Semi-cutoff designs blend both approaches, reducing light pollution by approximately 50% while maintaining some forward projection.

What Wattage LED Wall Pack Do I Need?

Most commercial applications require 50-watt to 100-watt LED wall packs for standard security and pathway lighting. A 60-watt LED wall pack produces approximately 7,900 lumens and replaces a 175-watt metal halide fixture, while a 100-watt LED replaces 250-watt traditional fixtures. Many wall packs feature toggle-adjustable wattage settings, allowing you to customize output from 50W/75W/100W after installation based on actual lighting needs.

How Long Do LED Wall Pack Lights Last?

Commercial-grade LED wall packs typically last 20+ years with minimal maintenance requirements. Unlike traditional fixtures that require bulb replacements every 1-2 years and ballast changes every 5-7 years, LED wall packs provide consistent light output throughout their lifespan. Most fixtures include 5-year warranties with USA-based support, and the robust construction withstands extreme weather conditions and temperature fluctuations.

What Color Temperature Should I Choose for LED Wall Packs?

5000K color temperature remains the most popular choice for LED wall packs, providing crisp white light that enhances security visibility and effectively replaces metal halide fixtures. 4000K offers a slightly warmer white light suitable for areas transitioning from fluorescent lighting. Many fixtures feature toggle-adjustable color temperature selection, allowing you to choose between 3000K, 4000K, and 5000K after installation.

Do LED Wall Packs Work With Motion Sensors and Photocells?

Many LED wall packs include integrated motion sensors for additional energy savings and automatic security activation. Dusk-to-dawn photocells ensure fixtures turn on automatically at sunset and off at sunrise without manual intervention. These controls can reduce energy consumption by an additional 30-50% in low-traffic areas while maintaining security lighting when needed.

What Certifications Should LED Wall Packs Have?

Quality LED wall packs require UL Listed or ETL Listed certifications for electrical safety and code compliance. DLC Premium qualification ensures maximum utility rebate eligibility and demonstrates superior energy efficiency performance. IP65 ratings provide dust-tight and water-resistant protection for outdoor installations, while IK08 impact ratings ensure durability against mechanical damage.

Why Do Electricians Choose LED Lighting Supply for Wall Pack Projects?

We provide comprehensive project support beyond product sales, including complimentary lighting plans, photometric calculations, and precise energy savings analysis based on your specific installation requirements. Our 15+ years of commercial lighting expertise and experience with 25,000+ completed projects help contractors select optimal fixture configurations, calculate exact ROI, and ensure proper light levels for security compliance. All products ship from USA warehouses with technical support from experienced lighting specialists who understand installation challenges.

Can LED Wall Packs Be Dimmed?

Many LED wall packs support 0-10V dimming for additional energy savings and light level control. Toggle-adjustable fixtures allow wattage selection between multiple settings (typically 50W/75W/100W) without external dimming controls. Motion sensor-equipped fixtures automatically dim to 20-30% output during inactive periods and brighten to full output when motion is detected, maximizing both security effectiveness and energy efficiency.

What Mounting Options Are Available for LED Wall Packs?

LED wall packs accommodate various mounting configurations including direct wall mount, junction box mount, and conduit entry options for both top and back wiring. Most fixtures include universal mounting brackets compatible with existing wall pack installations, eliminating the need for new electrical work. The reduced amp draw of LED fixtures typically allows direct replacement without electrical panel upgrades, simplifying retrofit installations for contractors.

How Do I Calculate ROI for LED Wall Pack Upgrades?

ROI calculation includes both energy and maintenance savings over the fixture's lifespan. A typical 20-fixture retrofit from 400W metal halide to 150W LED wall packs generates $2,847 annual energy savings plus $400 yearly maintenance savings at standard commercial rates. Total 20-year savings of approximately $65,000 typically provide payback periods under 12 months, making LED wall packs one of the fastest-returning commercial lighting investments.
