LED Outdoor Lights

What are LED Commercial Outdoor Lighting Fixtures?

Converting from HID to LED outdoor lighting transforms your facility's energy profile while dramatically improving light quality. After 17 years in commercial lighting, we've refined our approach to eliminate the guesswork from outdoor conversions. Our process starts with free lighting plans that model your exact location using satellite data. We position fixtures virtually, adjust wattage and beam patterns, then deliver a photometric analysis showing precise illumination levels across your property.

Whether your priority is enhanced security with motion sensors, automated operation with photocells, or maximizing energy savings, we customize each solution. Our drivers automatically adjust to your building's voltage-whether 120-277V or 277-480V-eliminating compatibility concerns. Most customers see immediate improvements in light uniformity and brightness at night while cutting energy costs by 50-60 percent. When you need guidance on fixture selection or have installation questions, reach out through contact us or use our online chat for immediate assistance.

These energy savings align with findings from the U.S. Department of Energy's LED outdoor lighting research, which demonstrates that LED systems consistently deliver 50-70% energy reductions compared to traditional HID lighting while providing superior light quality and control capabilities.

What are the Benefits of Using LED Outdoor Lighting?

Outdoor LED conversions deliver measurable improvements across every performance metric that matters to facility managers:

The Illuminating Engineering Society (IES) recommended practices for outdoor lighting emphasize these LED advantages, particularly the ability to achieve precise light distribution while minimizing environmental impacts through better optical control and reduced light trespass.

What are the Common Applications for LED Outdoor Lights?

How Do I Choose the Correct LED Lighting Supply Outdoor Lights?

Selecting optimal fixtures requires balancing several critical factors that directly impact performance and long-term satisfaction:

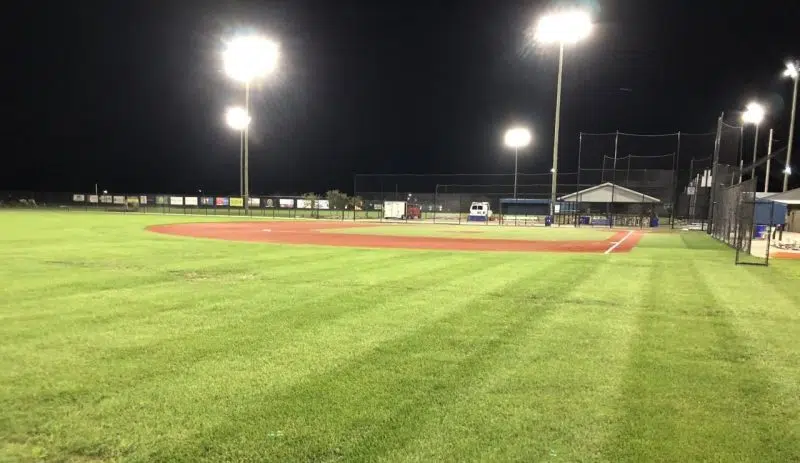

Target illumination levels: We typically recommend 2-5 footcandles for parking areas, 1-3 footcandles for walkways, and 50-100 footcandles for sports applications, though specific requirements vary by use case and local codes.

These illumination recommendations follow guidance from the IES RP-20 Lighting for Parking Facilities standard, which establishes minimum light levels based on safety requirements and usage patterns for different outdoor applications.

Mounting height considerations: Fixtures range from 12-foot wall packs to 40-foot pole-mounted systems. Higher mounting requires wider beam spreads and increased lumen output to maintain ground-level illumination.

Installation compatibility: Choose between slip fitter mounts for existing poles, trunnion mounts for adjustable aiming, yoke mounts for precise positioning, or integrated LED pole packages for new construction.

Electrical requirements: Our universal drivers accommodate both 120-277V and 277-480V inputs automatically, eliminating the need for voltage-specific fixtures in most installations.

Control integration needs: Built-in photocells enable dusk-to-dawn operation, while motion sensors provide security activation and additional energy savings through occupancy-based dimming.

Performance tier selection: Commercial-grade fixtures suit standard applications, while waterproof industrial-rated models withstand harsh environments with enhanced IP65 sealing and IK08 impact resistance.

Investment priorities: Our Good-Better-Best framework helps balance upfront costs against long-term performance, with premium tiers offering extended warranties and advanced features.

Project timeline requirements: Many popular configurations ship same-day from our warehouse, while custom specifications may require additional lead time for optimal results when you order.

Color temperature preferences: 4000K provides balanced white light suitable for most applications, while 5000K delivers a crisp daylight appearance preferred for security and detail work.

Optical distribution patterns: Type III works well for roadways and rectangular areas, Type V provides circular coverage ideal for parking lots, while adjustable floods offer 15-60 degree beam control for specialized applications.

Finish options: We offer a variety of finishes including bronze and black to complement your building's architecture with stylish aesthetics.

Free LED Outdoor Lighting Plans

Professional lighting design removes uncertainty from outdoor conversions by providing detailed photometric analysis before you purchase. Our complimentary lighting plans use your facility's actual dimensions and existing pole locations to model precise illumination patterns. We calculate footcandle levels across outdoor areas, identify any dark spots or hot spots, and then recommend specific fixtures and positioning to achieve uniform coverage.

The modeling process accounts for mounting heights, surrounding structures, and your specific light level requirements. We can simulate different scenarios-comparing wattage options, testing various beam angles, or showing the impact of adding motion sensors. This approach has prevented countless installation problems over the years by revealing potential issues during the design phase rather than after fixtures are installed.

Safety and Performance Certifications

All our fixtures carry essential certifications, including DLC Premium, UL Listed, and ETL Listed approvals. These certifications ensure safety, performance, and energy efficiency while qualifying your project for utility rebates and tax incentives. DLC Premium certification guarantees the highest efficiency standards and maximum rebate eligibility.

Warranty and Support

All our lights come with at least a 5-year warranty, and all warranty support is based in the USA. We take customer support seriously, and helping you with a warranty claim is important to us. Our experienced support team understands the importance of keeping your lighting operational and will work quickly to resolve any warranty issues.

Expert Support Throughout Your LED Conversion

Our lighting specialists bring decades of combined experience in outdoor commercial applications to every consultation. They understand the unique challenges of sports facilities, parking lots, manufacturing plants, and retail centers. When you need to verify compatibility with existing electrical systems, compare performance specifications between fixtures, or determine optimal control strategies for your specific use case, our team provides direct access to engineers who design these systems daily.

We complement our free lighting plans with detailed energy savings calculations that project your exact cost reductions and payback timelines. This comprehensive approach ensures you make informed decisions backed by technical expertise rather than relying on generic product specifications.

Common Mistakes and How to Avoid Them

I've watched contractors struggle with the same outdoor lighting issues for years. Most of these problems come from rushing the planning phase or assuming LEDs work like the old HID systems they're replacing. The difference is you can't just swap watts and call it good.

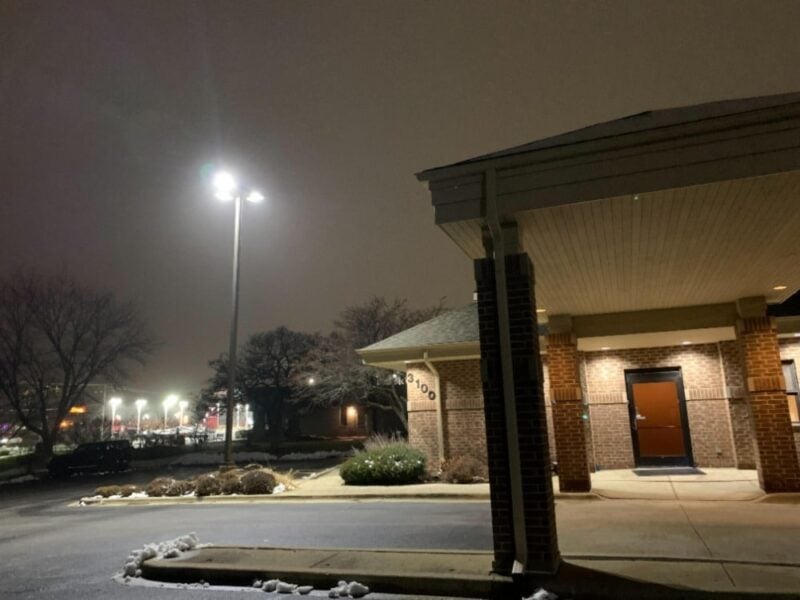

• Undersizing fixtures by only looking at wattage instead of actual lumen output. A 150W LED can easily replace a 400W metal halide in most parking lot applications, but you need to check the photometrics first.
• Mounting fixtures on poles without verifying weight and wind load ratings. Old HID fixtures were heavy, but some LED arrays are much lighter with higher wind resistance, while others have different load characteristics entirely.
• Installing photocells facing the wrong direction or too close to the light source. Point them north when possible and keep them away from reflective surfaces that cause false readings.
• Using the wrong beam angle for your mounting height and spacing. Type V distribution doesn't work for everything, and narrow floods mounted too low create hot spots with dark rings around them.
• Skipping the voltage check at each pole before ordering fixtures. You might have 480V at the panel but only see 440V at the far end of a long run, which affects driver performance.
• Mixing different manufacturers across a single area without checking color consistency. Even fixtures rated at the same color temperature can look noticeably different side by side.
• Installing motion sensors without considering detection patterns and local interference sources. That sensor picking up traffic from the street will drive your maintenance guys crazy with false alarms.
• Failing to account for seasonal changes in tree coverage when planning fixture placement. What works great in winter might be completely blocked by foliage in summer.

LED Outdoor Lights Frequently Asked Questions

How Much Energy Do LED Outdoor Lights Save Compared to Traditional Fixtures?

LED outdoor fixtures typically reduce energy consumption by 50-60% compared to metal halide or high-pressure sodium systems. We've measured installations where 400W metal halide fixtures were replaced with 150W LED equivalents that produce superior light output. When paired with smart controls and motion sensors, total energy savings can exceed 70% annually.

What Is the Lifespan of Commercial LED Outdoor Lighting Fixtures?

Commercial LED outdoor fixtures operate for 50,000+ hours while maintaining consistent light output throughout their lifespan. This translates to approximately 15-20 years of typical outdoor operation, compared to metal halide lamps that fail around 12,000 hours and require frequent replacements.

Do LED Outdoor Lights Work in Cold Weather Conditions?

LEDs perform exceptionally well in cold temperatures, often producing 10-15% higher output in winter conditions compared to summer operation. Unlike HID lamps that struggle to start in freezing weather, LED fixtures provide instant full brightness regardless of ambient temperature. Most commercial fixtures operate reliably in temperatures ranging from -40°F to 104°F.

What Beam Patterns Should I Choose for Parking Lot Lighting?

Type V distribution provides circular light patterns ideal for parking areas, delivering uniform coverage from pole-mounted fixtures. For rectangular lots or perimeter lighting, Type III optics create forward-throw patterns that maximize spacing between poles. We recommend 2-5 footcandles average illumination with 4:1 uniformity ratios for most commercial parking applications.

Can LED Outdoor Fixtures Be Dimmed and Controlled Remotely?

Most commercial LED outdoor fixtures support 0-10V dimming from 100% down to 10% output with smooth performance throughout the range. Built-in photocells enable automatic dusk-to-dawn operation, while motion sensors provide occupancy-based control for additional energy savings. Advanced fixtures integrate with building management systems for centralized scheduling and monitoring.

What Certifications Should I Look for in Commercial Outdoor LED Fixtures?

Essential certifications include UL Listed or ETL Listed for electrical safety, DLC Premium for maximum energy efficiency and utility rebate eligibility, and IP65 rating for weather protection. Look for IK08 impact resistance in high-traffic areas and verify the fixture meets local dark sky ordinances if applicable.

How Do I Calculate How Many LED Fixtures I Need for My Property?

Professional photometric analysis determines exact fixture quantities and positioning for optimal coverage. We provide free lighting plans using satellite imagery and your specific illumination requirements to model precise footcandle levels across your property. This eliminates guesswork and prevents over-lighting or dark spots that generic spacing calculations often produce.

What's the Difference Between Type II, Type III, and Type V LED Optics?

Type II optics create narrow forward-throw patterns for walkways and narrow areas, Type III provides medium forward distribution ideal for roadways and rectangular spaces, while Type V delivers circular coverage perfect for parking lots and open areas. Each pattern optimizes light placement for specific geometric requirements and mounting configurations.

Why Should Electrical Contractors Choose LED Lighting Supply for Outdoor Projects?

We provide comprehensive project support beyond product sales, including free photometric layouts, technical specification assistance, and same-day shipping on popular configurations. Our team's experience across 25,000+ commercial installations means we understand real-world installation challenges and can recommend solutions that prevent callbacks. We also offer direct contractor pricing and dedicated account management for repeat customers.

Do LED Outdoor Lights Require Special Installation Considerations?

LED fixtures typically install directly into existing infrastructure without electrical modifications, as our universal drivers accommodate both 120-277V and 277-480V inputs automatically. Most fixtures use standard slip fitter mounts for pole installation or universal brackets for wall mounting. The main consideration is proper heat dissipation, which our fixtures handle through engineered thermal management systems.

What Color Temperature Is Best for Outdoor Security Lighting?

4000K provides balanced white light that enhances visibility while maintaining comfortable ambiance for most commercial applications. 5000K delivers crisp daylight appearance preferred for high-security areas and surveillance applications. Both options maintain excellent color rendering with CRI 70+ for accurate object identification and enhanced safety.

How Do Motion Sensors Work with LED Outdoor Lighting Systems?

Integrated motion sensors maintain fixtures at 20-30% output during idle periods, then ramp to full brightness within seconds when movement is detected. Detection ranges typically extend 20-40 feet with adjustable sensitivity settings, while programmable time delays control how long fixtures remain at full output after activity ceases. This approach provides immediate security response while maximizing energy efficiency.
