LED Lights for Race Tracks

What are LED Race Track Lights?

LED race track lights are high-performance, pole-mounted fixtures engineered specifically for motorsports venues. These powerful outdoor luminaires feature precision optics designed to deliver targeted illumination across track surfaces with exceptional uniformity. Available in power ratings from 200W to 1200W, they produce between 28,000 and 180,000 lumens while operating on either 100-277V or 277-480V inputs.

After 17 years of designing track lighting solutions, we've found that beam control is everything in motorsports applications. Our fixtures incorporate narrow-beam optics ranging from 15° to 60° to eliminate light spillage and focus every lumen where drivers need it most. The robust construction features IP65 weatherproof ratings and IK08 impact resistance, ensuring it withstands the demanding racetrack environment.

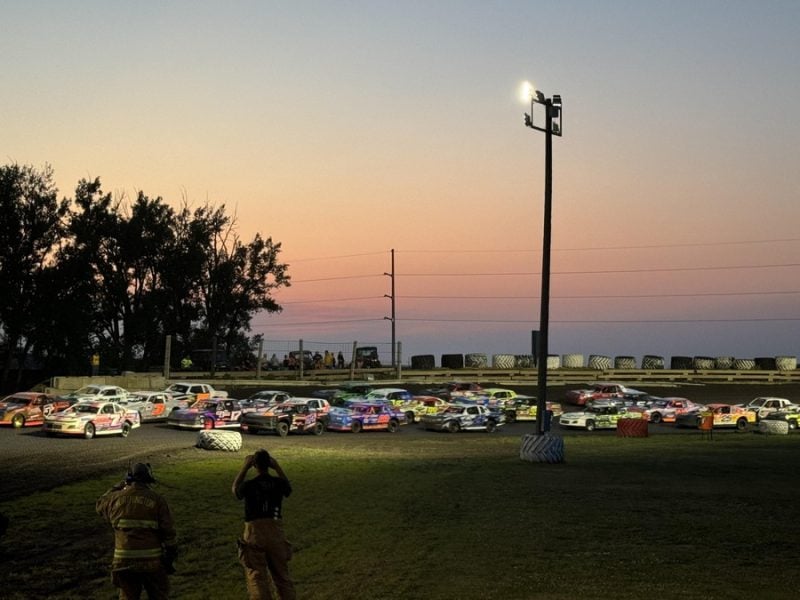

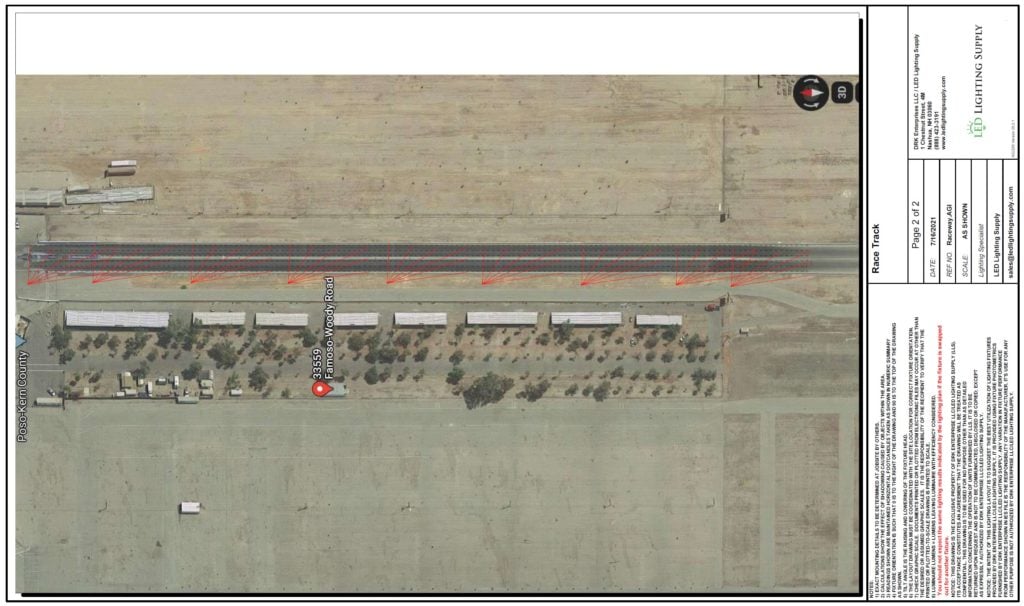

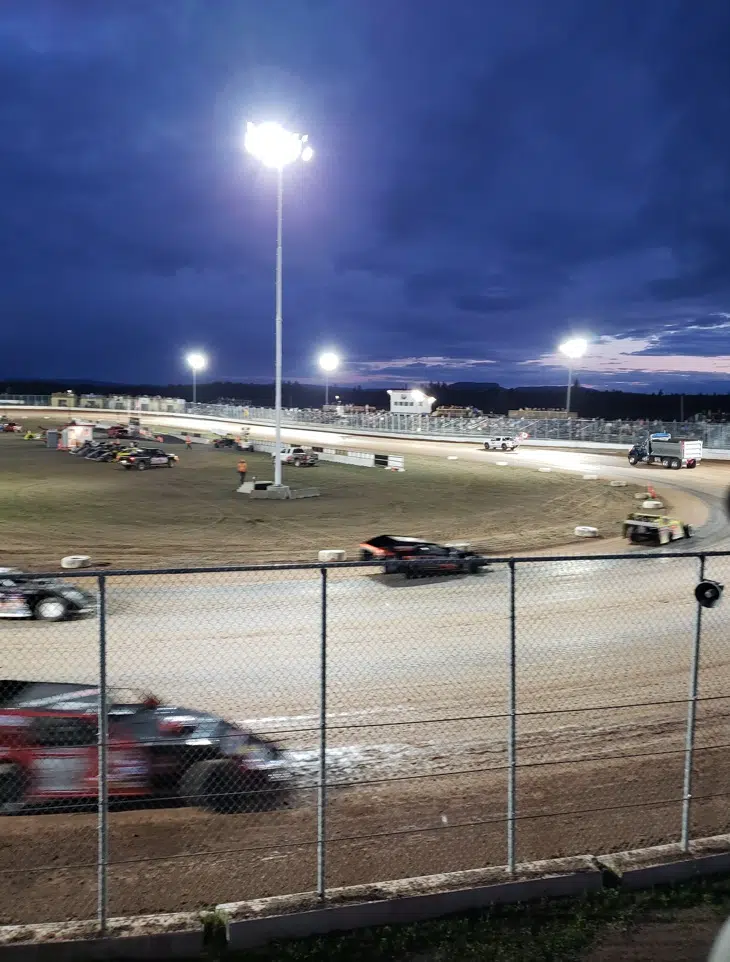

We supplied this customer with their custom lighting plan and then the lights. Here are the results!

What are the Benefits of Using LED Lights for Race Tracks?

What are the Recommended Foot Candles for Race Tracks?

Professional lighting design often references established industry standards for sports facilities. The Illuminating Engineering Society (IES) recommended practices provide detailed guidance on illumination levels, uniformity ratios, and glare control for various motorsports applications to ensure optimal visibility and safety for both drivers and spectators.

How to Select the Best LED Race Track Lighting

Choosing optimal race track lighting requires careful evaluation of several critical factors. Based on our experience with hundreds of motorsports venues, we recommend following this systematic approach:

Determine Required Illumination Levels: Competition level drives lighting requirements. Professional tracks need 50-100 foot candles while regional venues typically require 20-50 foot candles. We can provide specific recommendations based on your racing format.

Assess Existing Infrastructure: Document current pole locations, heights, and structural capacity. Most tracks have adequate poles but may need reinforcement for heavier stadium lights. We also supply complete pole packages when needed.

Calculate Optimal Mounting Height: Higher mounting positions reduce glare and improve uniformity. We typically recommend 60-80 feet for oval tracks and 80-100 feet for road courses, depending on coverage requirements.

Evaluate Current Lighting System: Note existing fixture count, wattage, and mounting method. Most metal halide systems can be directly replaced with LED equivalents using existing brackets and electrical connections.

Confirm Mounting Configuration: Our fixtures accommodate standard slip-fit, bolt-on, and custom mounting options. We can often match your existing hardware to simplify installation .

Establish Project Budget: Balance initial investment with long-term savings. Most track owners prioritize cost savings and reduced maintenance over the lowest upfront cost.

We never recommend fixtures without proper analysis. Every track receives a comprehensive lighting design to ensure optimal performance and compliance with safety standards.

How Can You Calculate the Lights You'll Need for a Race Track?

Accurate fixture count requires detailed photometric analysis-guessing leads to poor results and safety issues. Track geometry, pole locations, mounting height, and competition requirements all influence the final design. We provide comprehensive lighting plans that specify exact fixture placement, beam angles, and aiming points for optimal coverage.

Our design process includes glare mitigation strategies. Proper fixture aiming toward the racing surface virtually eliminates glare for drivers while maintaining excellent spectator visibility. When necessary, we incorporate side shields and specialized optics to further control light distribution and prevent off-site spillage.

Professional photometric analysis follows established design standards and calculation methods. The IES lighting calculation procedures provide the framework for accurate illuminance predictions, uniformity analysis, and glare assessment that ensure motorsports facilities meet both performance and safety requirements for drivers and spectators.

Safety and Performance Certifications

All our energy-efficient fixtures carry essential certifications, including DLC Premium, UL Listed, and ETL Listed approvals. These certifications ensure safety, reliable performance, and energy efficiency while qualifying your project for utility rebates and tax incentives. DLC Premium certification guarantees the highest efficiency standards and maximum rebate eligibility.

5-Year Warranty and Support

All our lights come with a minimum 5-year warranty, and all warranty support is provided in the USA. We take customer support seriously, and helping you with a warranty claim is important to us. Our experienced support team understands the importance of keeping your lighting operational and will work quickly to resolve any warranty issues.

Why Track Owners Choose LED Lighting Supply

Our motorsports lighting specialists have designed systems for numerous racing venues nationwide. We provide complimentary custom lighting plans that include photometric analysis, exact energy savings calculations, and pole-by-pole fixture specifications. Our team understands the unique challenges of each track type-from quarter-mile dirt ovals to road courses- and delivers high-performance solutions that meet competition standards while maximizing your budget. You receive detailed calculations showing your annual energy cost reduction and maintenance savings, backed by real performance data from our installed base of track lighting systems.

Common Mistakes and How to Avoid Them

After designing hundreds of race track lighting systems, we see facilities make the same costly errors repeatedly. These mistakes compromise safety, waste energy, and create expensive maintenance problems that proper planning prevents.

• Installing generic sports lights instead of motorsports-specific fixtures leads to poor beam control and excessive glare. Select fixtures with narrow beam angles designed specifically for track applications.
• Underestimating illumination requirements for competition levels results in inadequate lighting that fails inspection. Verify foot candle requirements with your sanctioning body before ordering fixtures.
• Skipping photometric analysis and guessing fixture quantities creates dark spots and uneven coverage. Always obtain professional lighting calculations before purchasing equipment.
• Mounting fixtures too low increases glare and reduces uniformity across the racing surface. Install lights at minimum 60-foot heights for optimal performance.
• Using incorrect beam angles for track geometry wastes light and creates spillage problems. Match beam angles to your specific pole spacing and mounting configuration.
• Ignoring existing pole structural capacity can cause mounting failures with heavier LED fixtures. Have a structural engineer evaluate pole load capacity before installation.
• Failing to control off-site light spillage violates local ordinances and wastes energy. Specify fixtures with proper cutoff optics and side shielding when necessary.
• Purchasing fixtures without proper IP and IK ratings leads to premature failure in harsh racing environments. Verify IP65 weatherproof and IK08 impact ratings minimum.

LED Lights for Race Tracks Frequently Asked Questions

What Type of LED Fixtures Work Best for Race Track Lighting?

High-power LED flood lights with precision beam control provide optimal race track illumination. We recommend fixtures ranging from 400W to 1200W with 15° to 60° beam angles depending on mounting height and coverage requirements. These fixtures must feature IP65 weatherproof ratings and IK08 impact resistance to withstand the demanding motorsports environment.

How Much Energy Do LED Race Track Lights Save Compared to Metal Halide?

LED race track lights typically reduce energy consumption by 60-70% compared to metal halide systems. A track upgrading from 1000W metal halide fixtures to 400W LED equivalents can save $15,000-25,000 annually in electricity costs. We've found that most tracks achieve complete payback within 2-3 years based on typical racing schedules and utility rates.

What Footcandle Levels Are Required for Different Types of Race Tracks?

Professional racing venues require 50-100 footcandles on track surfaces, while regional and amateur tracks need 20-50 footcandles . Turn areas typically require 25-50% higher illumination than straightaways for optimal safety. Pit areas need 75-150 footcandles for mechanical work, and spectator areas require 10-30 footcandles depending on venue classification.

How High Should LED Race Track Lights Be Mounted for Best Performance?

Optimal mounting height ranges from 60-80 feet for oval tracks and 80-100 feet for road courses. Higher mounting reduces glare and improves uniformity across the racing surface. Pole height affects beam angle selection - taller poles require narrower beam angles to maintain proper light levels and minimize spillage.

Can LED Race Track Lights Replace Existing Metal Halide Fixtures Directly?

Most LED race track lights offer direct retrofit compatibility with existing metal halide mounting hardware. Our fixtures accommodate standard slip-fit, bolt-on, and yoke mounting configurations. The main consideration is structural load capacity, as some LED fixtures may be heavier than the metal halide units they replace.

How Long Do LED Race Track Lights Last Before Replacement?

Quality LED race track lights provide L70 ratings exceeding 100,000 hours, equivalent to 15-20 years of typical track operation. Unlike metal halide lamps that require replacement every 1-2 years, LED fixtures maintain consistent output throughout their lifespan. This eliminates the need for bucket truck maintenance and mid-season lamp changes.

What Beam Angles Work Best for Race Track LED Lighting?

Beam angle selection depends on mounting height and coverage area. 15-25° narrow beams work best for poles over 80 feet high, while 40-60° medium beams suit 60-80 foot mounting heights. We typically use multiple beam angles in a single installation to optimize uniformity and minimize fixture count while controlling light spillage.

Do LED Race Track Lights Work in All Weather Conditions?

Professional LED race track lights feature IP65 weatherproof construction that operates reliably in rain, snow, and extreme temperatures. Unlike metal halide systems that may fail to restrike after power interruptions during storms, LEDs provide instant-on capability regardless of weather conditions. Operating temperature ranges typically span -40°F to 140°F.

Why Should Track Owners Choose LED Lighting Supply for Their Lighting Projects?

We bring 15+ years of commercial and industrial lighting expertise and 25,000+ completed projects to every motorsports installation. Our consultative approach includes complimentary photometric analysis, detailed energy savings calculations, and pole-by-pole fixture specifications. We understand that every track layout presents unique challenges and provide solutions that meet competition standards while maximizing your investment return.

What Certifications Should Professional Race Track LED Lights Have?

Professional installations require UL Listed or ETL Listed fixtures for electrical safety compliance. DLC Premium certification ensures maximum energy efficiency and utility rebate eligibility. Additional ratings include IP65 for weather resistance and IK08 for impact protection against flying debris common in motorsports environments.

How Do You Calculate the Right Number of LED Fixtures for a Race Track?

Proper fixture count requires professional photometric analysis considering track geometry, pole locations, mounting height, and required illumination levels. We provide comprehensive lighting designs that specify exact fixture placement, beam angles, and aiming points. Guessing fixture quantities leads to poor uniformity, safety issues, and either over-spending or inadequate lighting performance.
