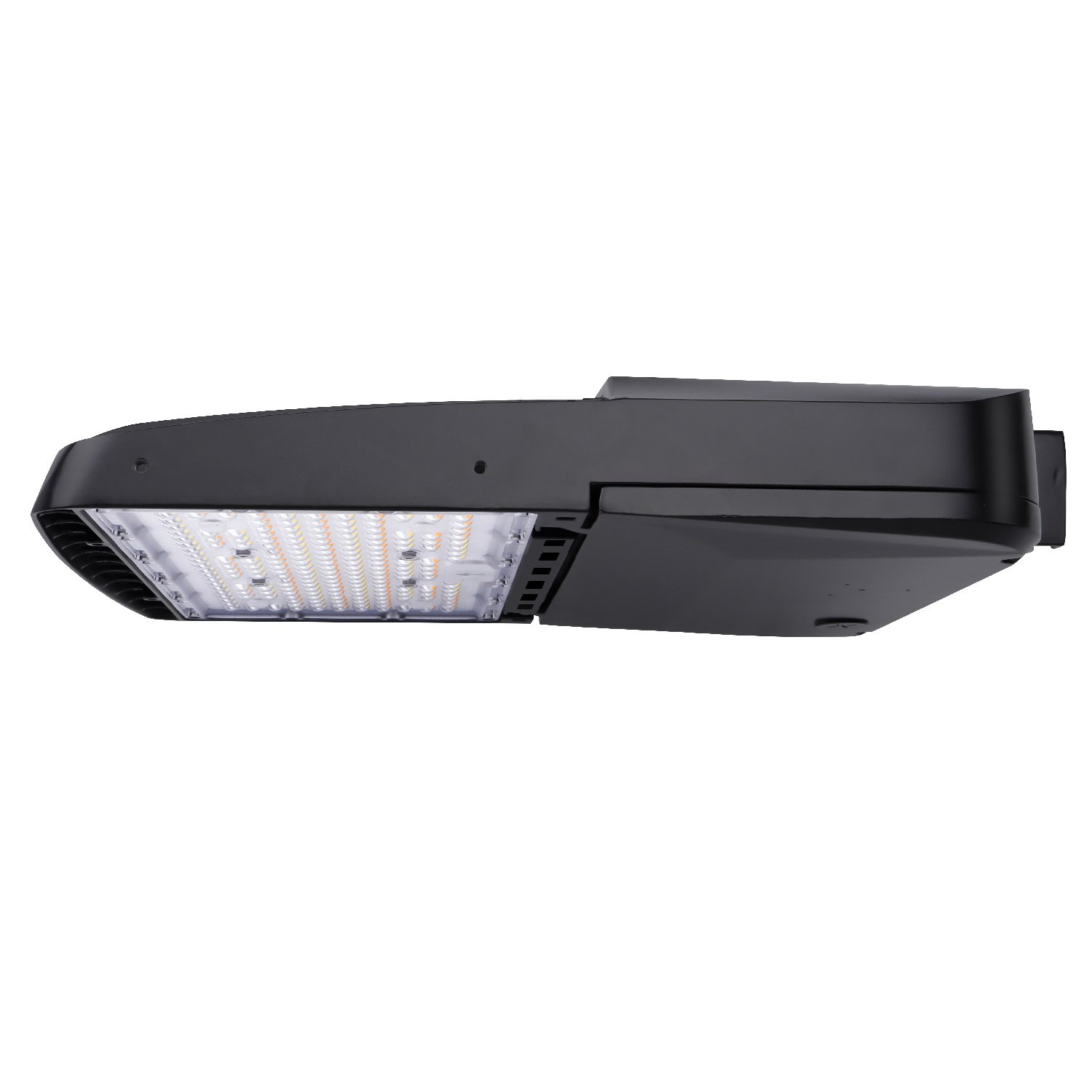

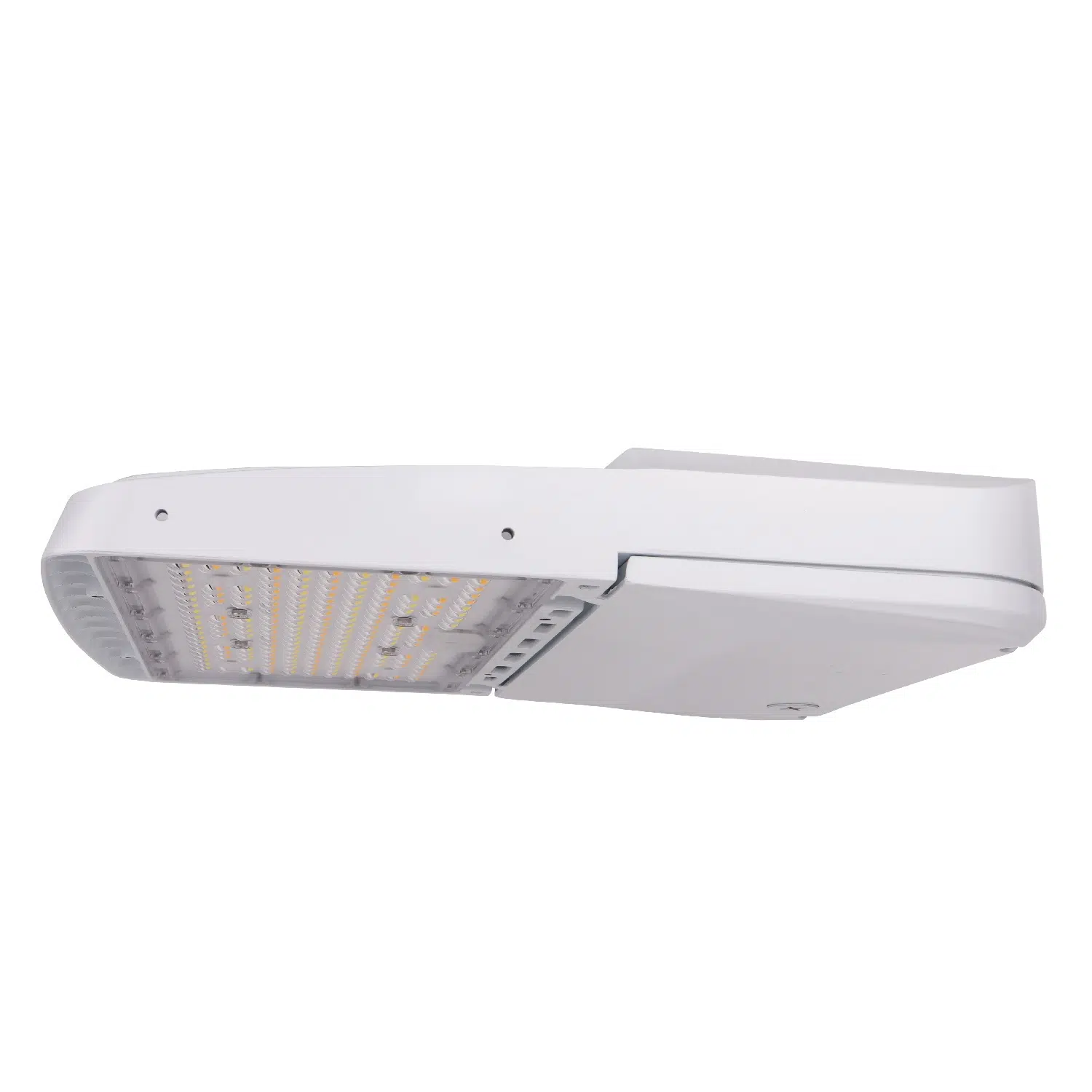

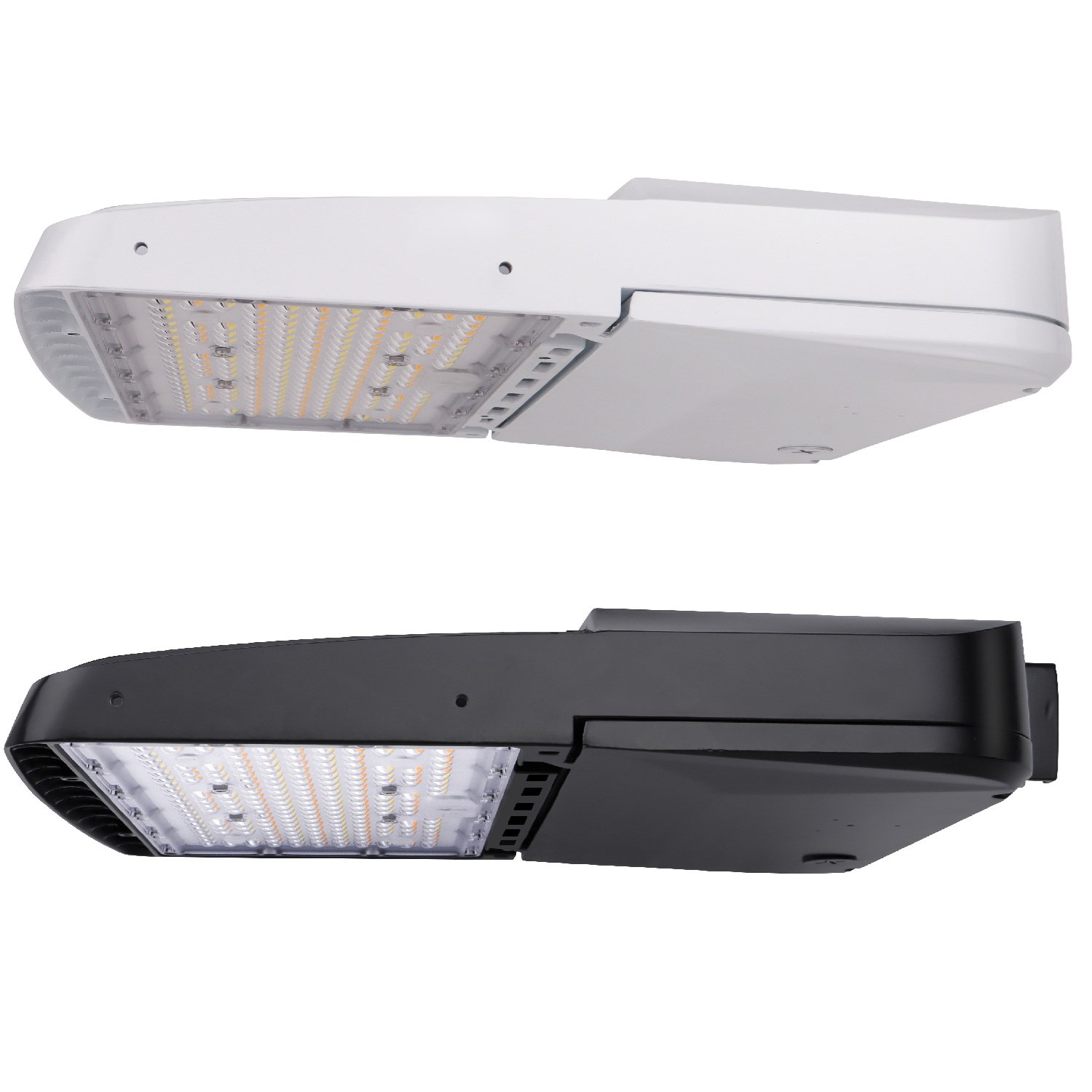

80 / 100 / 120 / 150 Watt Adjustable LED Shoebox | 12240 to 22950 Lumens | 3000K / 4000K / 5000K | 100-277V | Black or White

Adjustable LED Shoebox for Area and Street Lighting

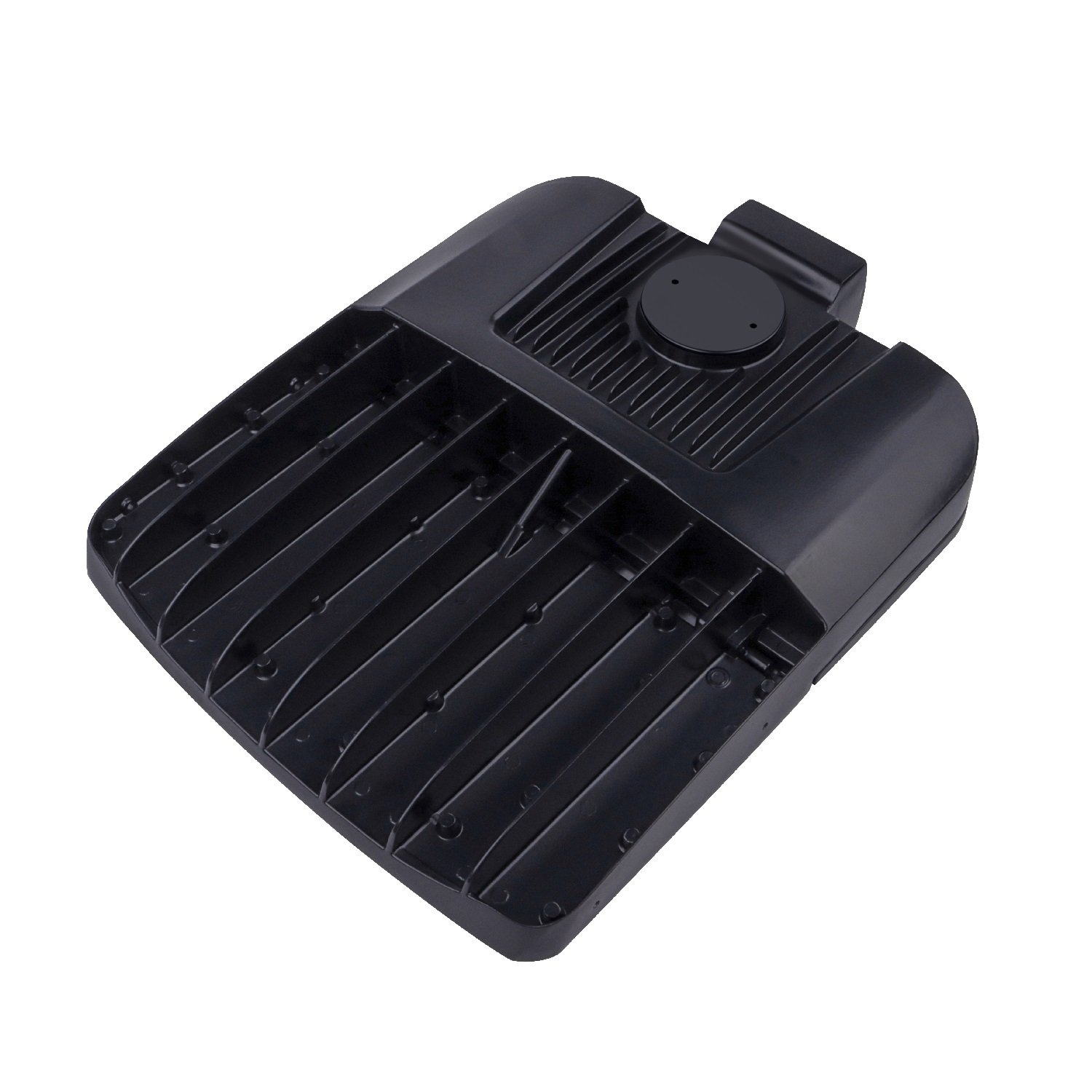

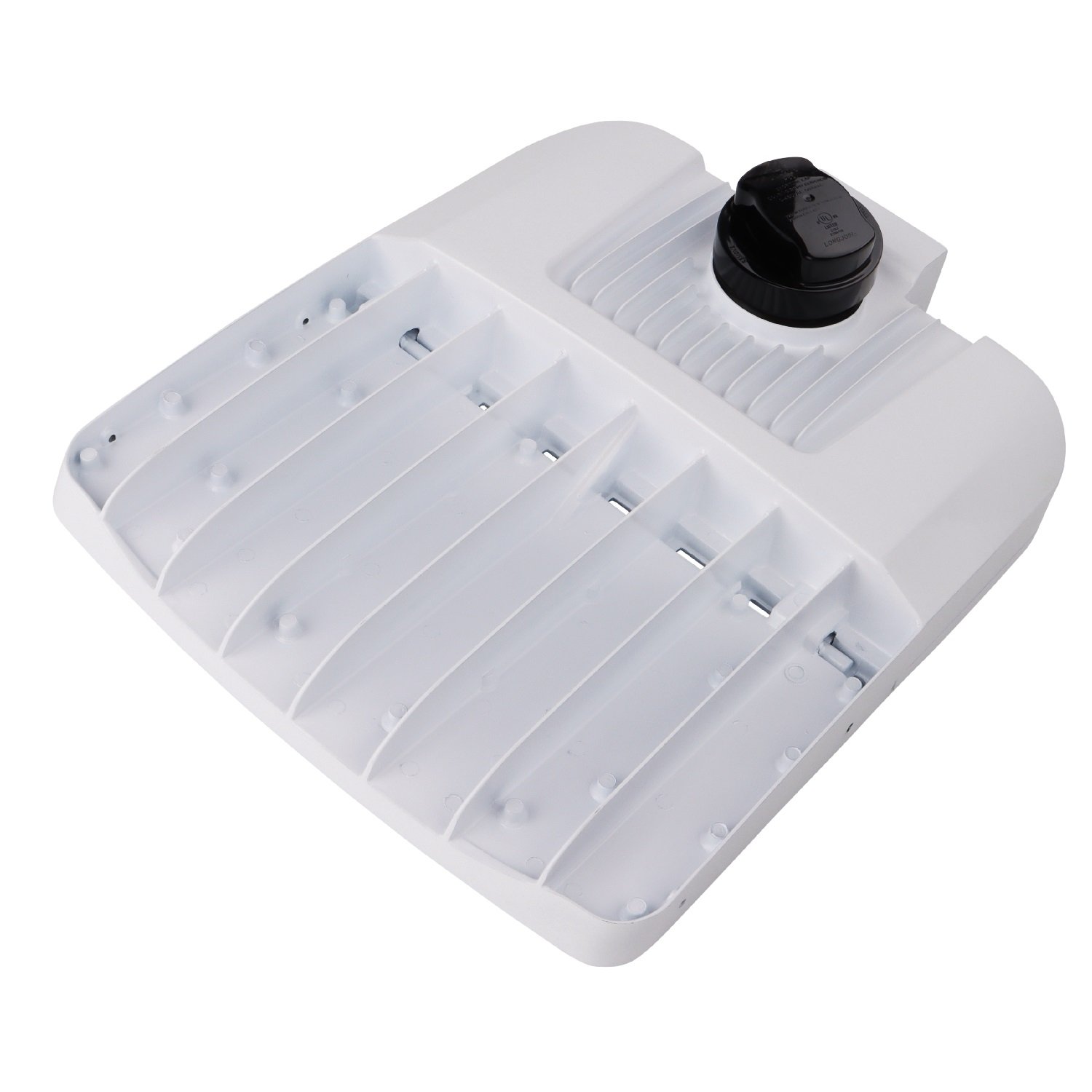

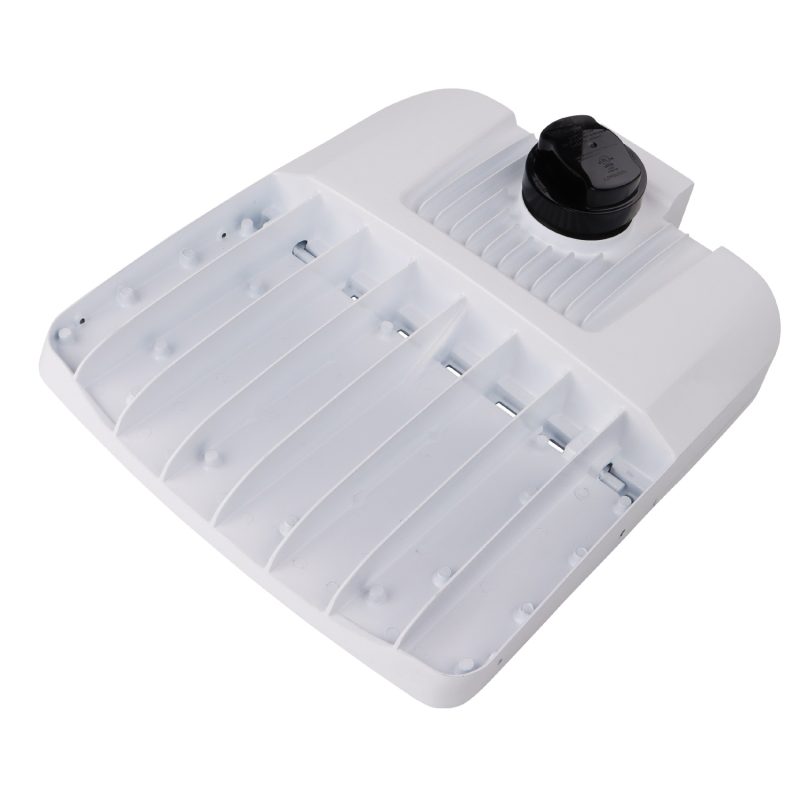

Built for environments where lighting requirements can vary between installations, this adjustable LED shoebox delivers field-selectable wattage and color temperature options in a single fixture. Engineered to handle demanding outdoor conditions, the die-cast aluminum housing withstands temperature extremes from -40°F to +113°F while maintaining consistent light output. What makes this fixture valuable for buyers is its 153 lumens per watt efficiency and 100,000-hour L70 lifespan, significantly reducing both energy costs and maintenance schedules compared to traditional area lighting solutions.

Replacing Older Lighting Systems

When upgrading from metal halide systems, this LED shoebox provides a direct 400-watt replacement while consuming only 80 to 150 watts depending on your selected power level. For facilities that require flexible lighting solutions, the adjustable wattage feature eliminates the need to stock multiple fixture types for different applications.

• Reduces energy consumption by up to 75% compared to 400W metal halide fixtures
• Eliminates warm-up time and restrike delays common with HID lighting
• Provides immediate full brightness with superior color rendering at 70+ CRI
• Operates reliably in extreme temperatures without performance degradation

Mounting, Setup & Controls

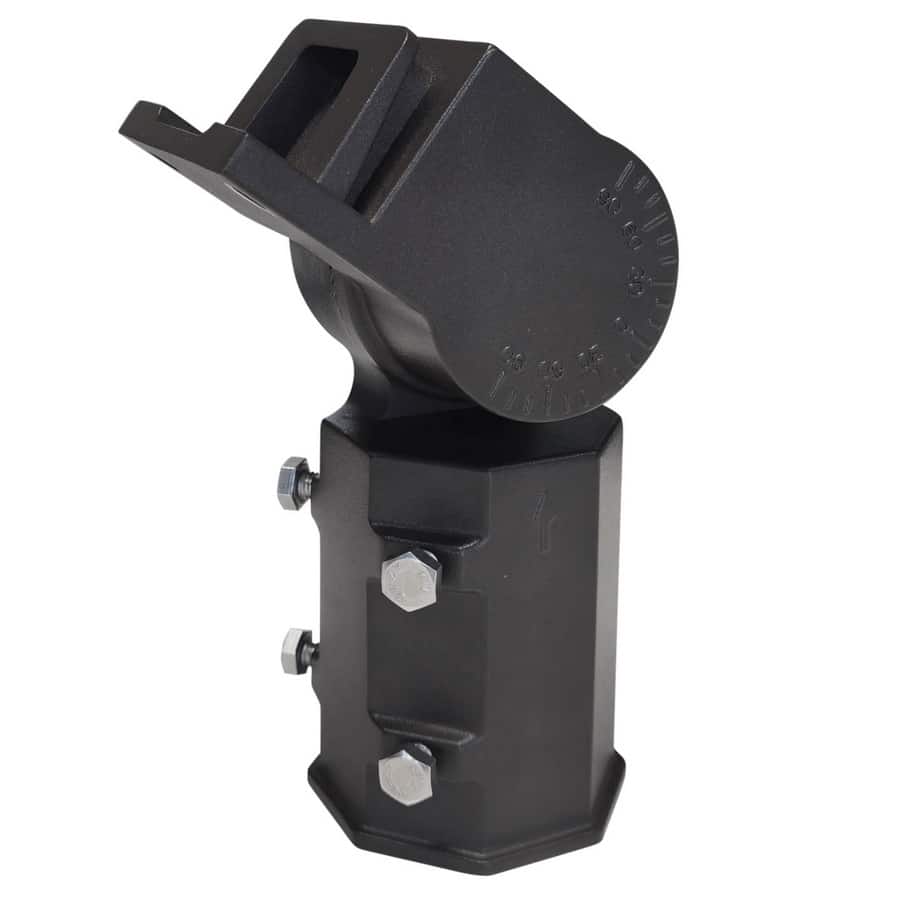

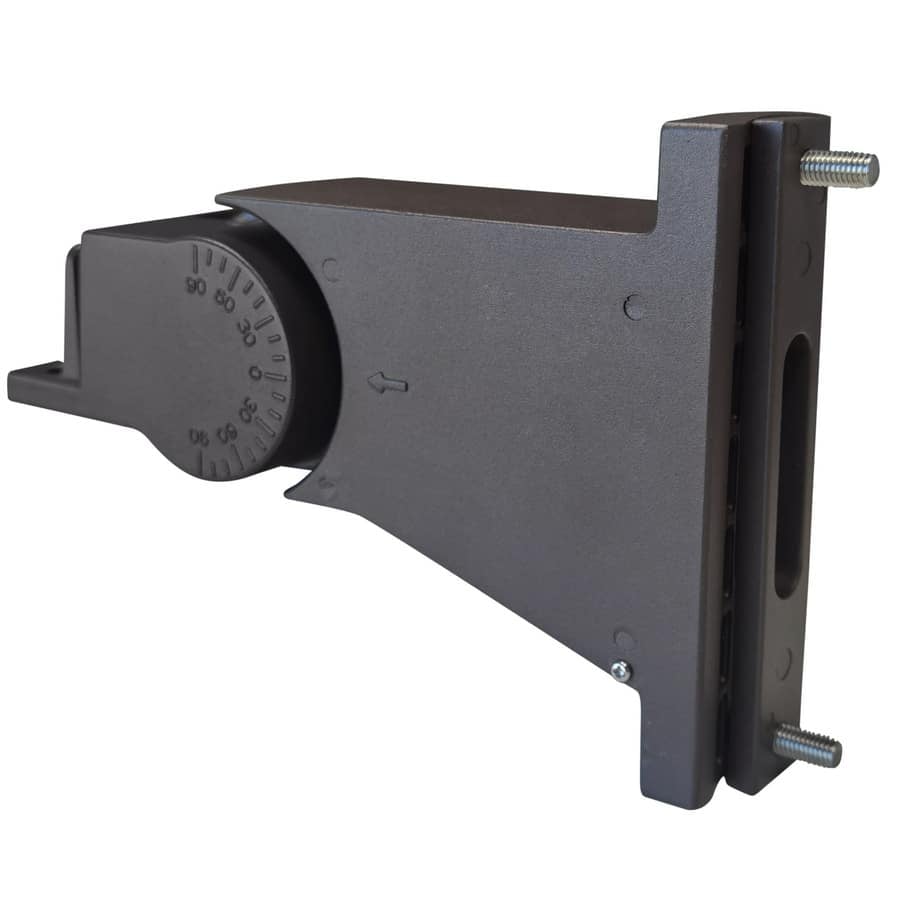

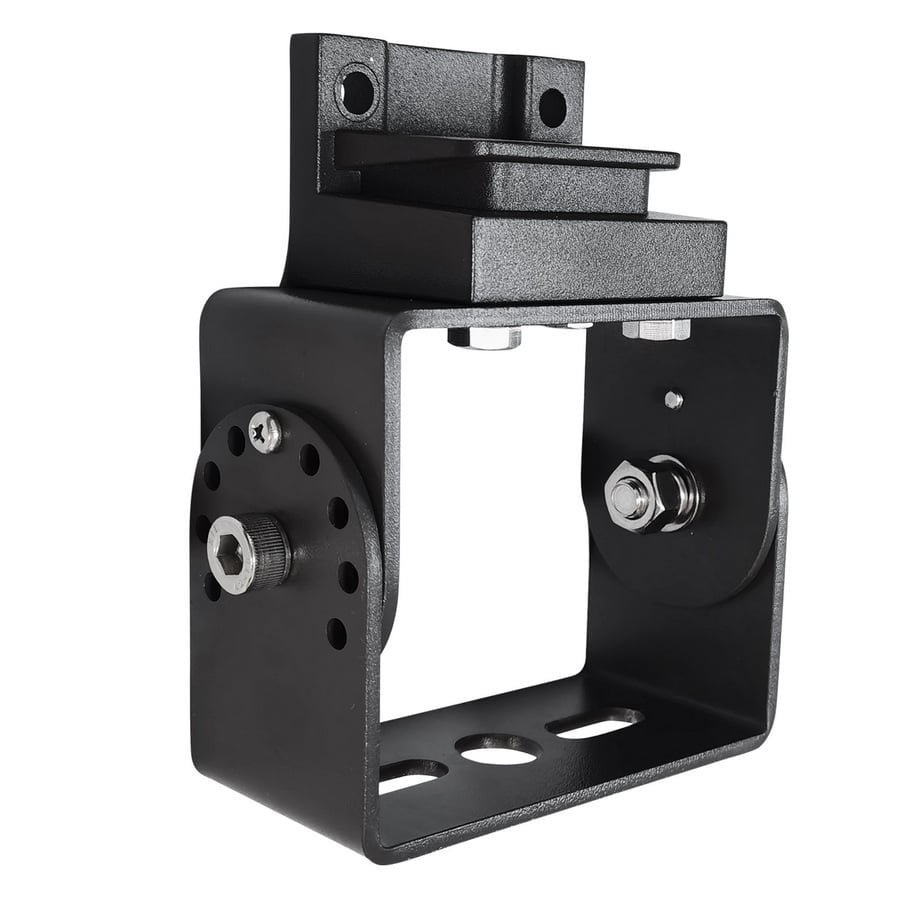

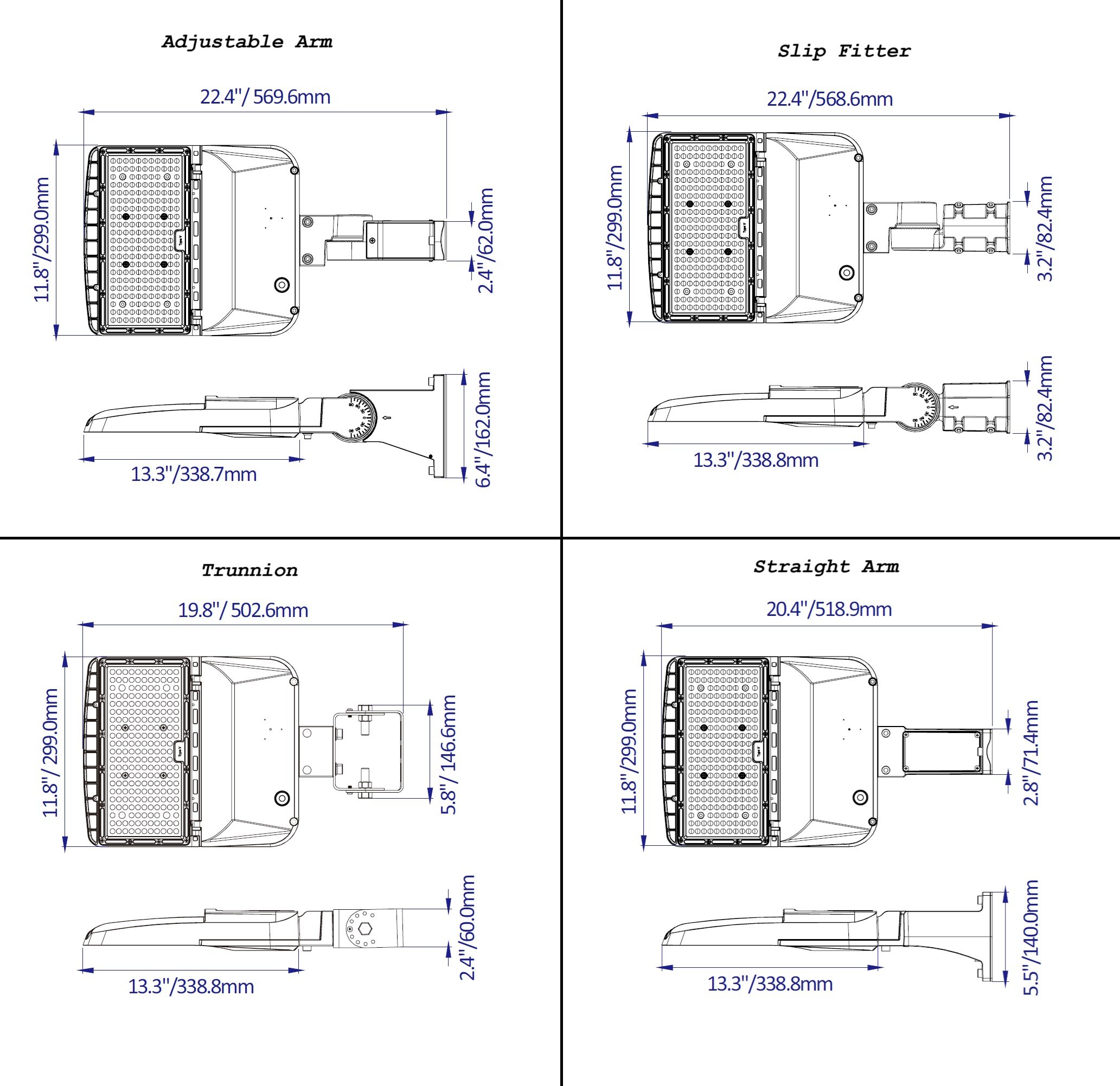

This fixture offers three mounting configurations to accommodate various installation requirements: arm mount for pole-top applications, slip fitter for standard post mounting, and trunnion mount for adjustable positioning. In practice, the field-adjustable controls allow technicians to select optimal wattage (80/100/120/150W) and color temperature (3000K/4000K/5000K) during installation. Additionally, the integrated photocell provides automatic dusk-to-dawn operation without requiring separate control systems.

Certifications

• UL Listed for safety compliance in commercial installations
• DLC Premium qualification ensures maximum utility rebate eligibility
• IP65 rating provides protection against dust and water ingress
• Five-year manufacturer warranty covers both fixture and LED components

Frequently Asked Questions

Can the wattage and color temperature be changed after installation?

Yes, both wattage and color temperature settings can be adjusted in the field using built-in controls, allowing you to optimize performance for specific applications or changing requirements.

What is the actual light output range across different wattage settings?

Light output ranges from 12,240 lumens at 80 watts up to 22,950 lumens at 150 watts, maintaining 153 lumens per watt efficiency across all power levels.

How does the Type 3 beam pattern perform for street and area lighting?

The Type 3 distribution provides optimal light spread for roadway and large area applications, delivering uniform illumination while minimizing light trespass and glare.

Performance Overview

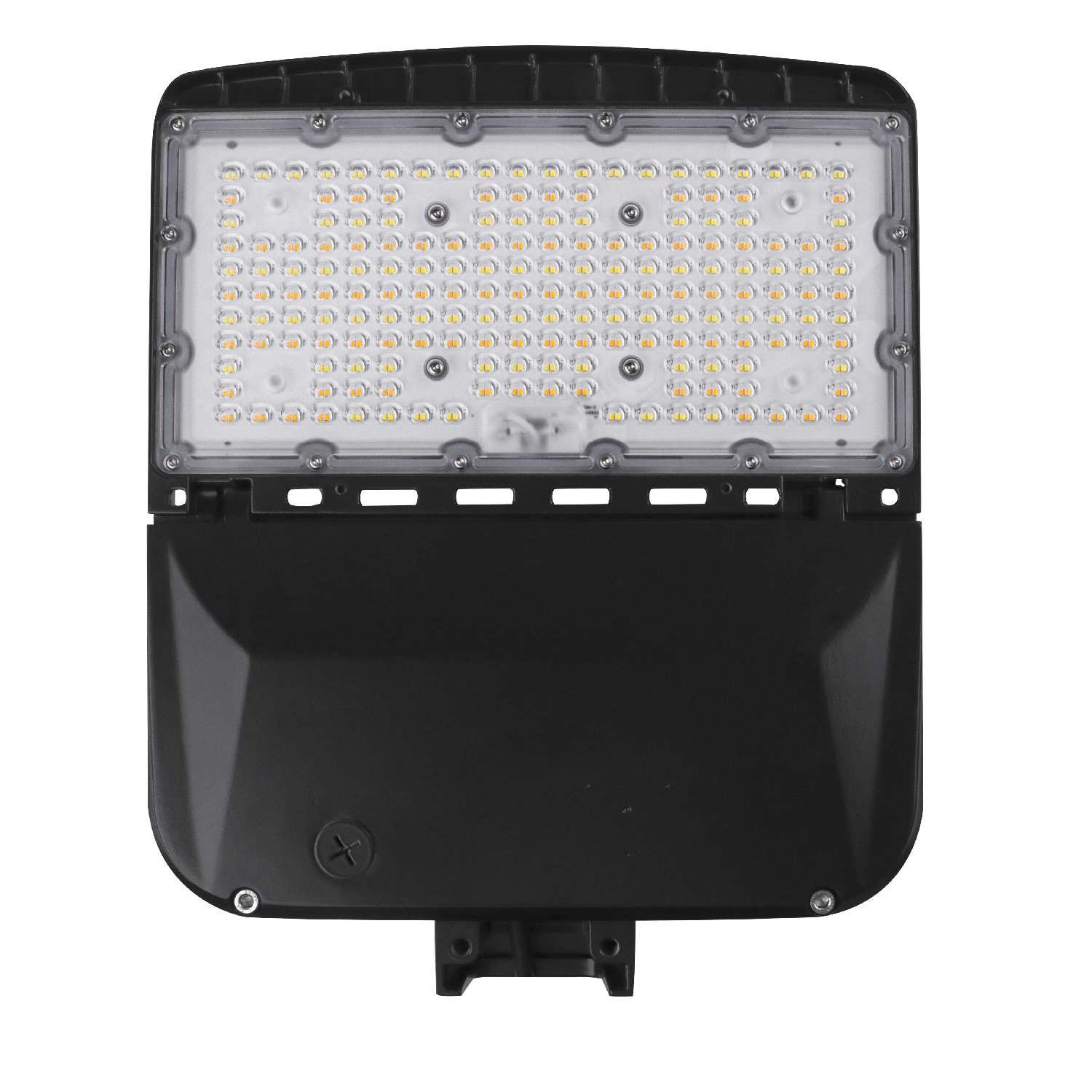

Designed to deliver consistent illumination across a wide range of outdoor applications, this fixture maintains superior optical performance through its precision-engineered polycarbonate lens system. Unlike traditional lighting options, the Type 3 beam distribution ensures uniform light coverage while the high power factor (>0.95) and low harmonic distortion (<15%) provide clean electrical operation. From a cost standpoint, the 100,000-hour L70 rating translates to approximately 25 years of operation at 12 hours per day.

• Four selectable wattage levels provide optimal energy efficiency for varying illumination needs
• Three color temperature options accommodate different environmental and aesthetic requirements
• Compact 14 in x 11.8 in x 3 in profile fits existing pole and mounting infrastructure
• Lightweight 7.2-pound construction reduces structural load on mounting systems
• 1.35 EPA rating minimizes wind resistance for enhanced mounting stability

Where This Fixture Excels

• Parking lot and garage lighting where consistent, bright illumination enhances security
• Street and roadway applications requiring precise beam control and uniform distribution
• Commercial and industrial perimeter lighting for property security and safety
• Municipal installations where energy efficiency and long-term reliability are priorities
• Retrofit projects replacing metal halide fixtures with existing mounting infrastructure
• Multi-zone developments where different areas may require varying light levels or color temperatures
