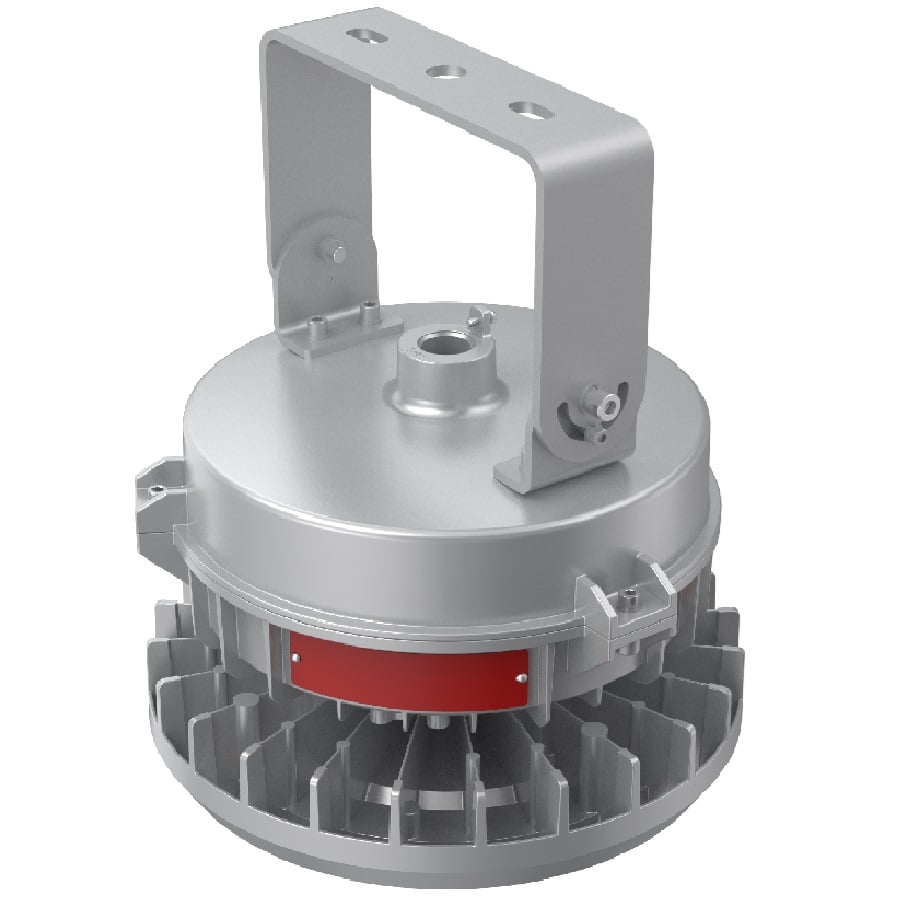

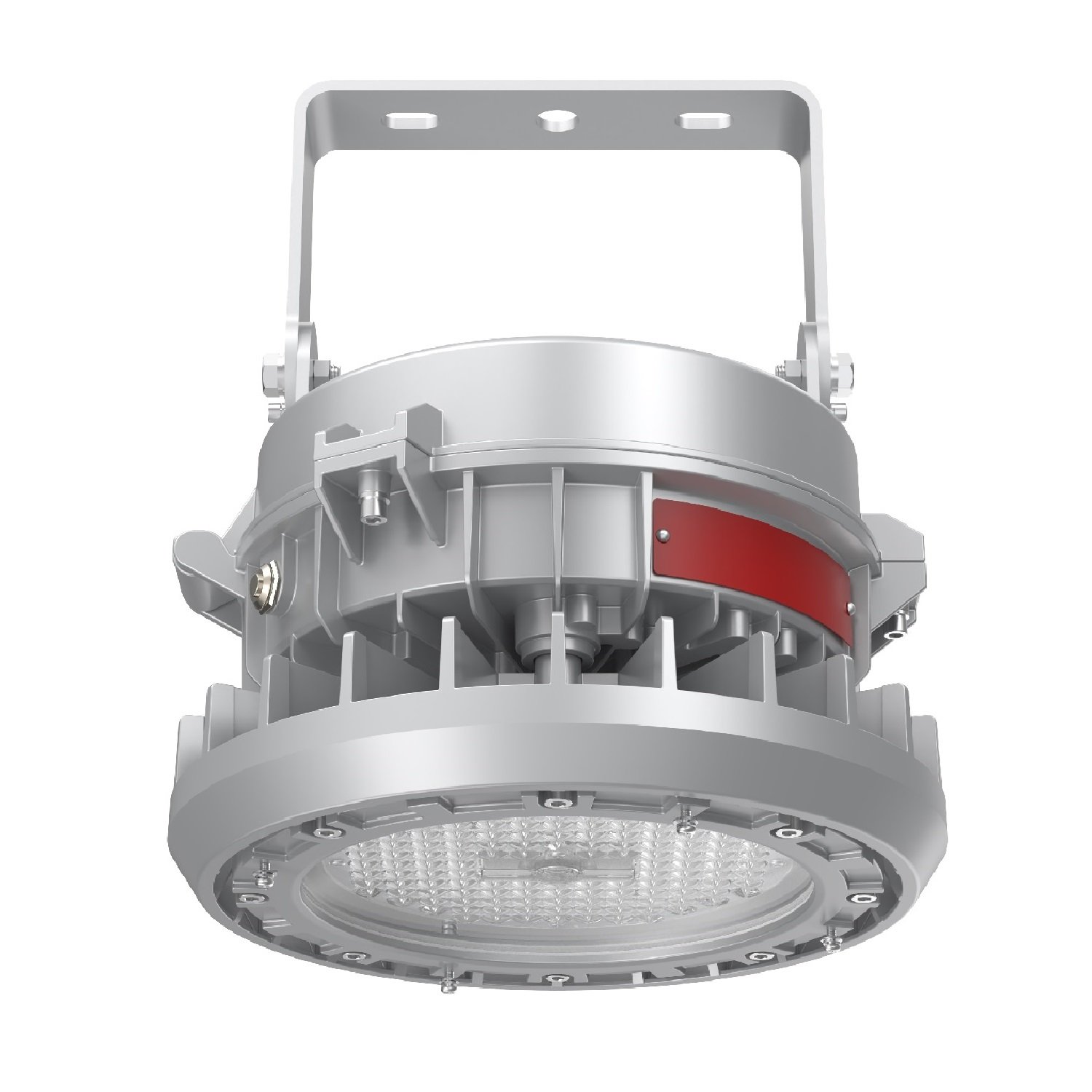

150 Watt Round Explosion Proof LED Light | 21000 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty

Professional Grade Explosion Proof Illumination

Built for environments where hazardous conditions demand certified safety lighting, this 150-watt explosion proof LED fixture delivers 21,000 lumens of reliable illumination. Engineered to handle demanding industrial conditions while meeting comprehensive UL844 standards, this round fixture provides consistent performance across multiple hazardous location classifications with professional-grade construction and versatile mounting capabilities.

Legacy Replacement Comparison

When upgrading from metal halide systems, this LED fixture replaces 400-watt traditional units while consuming 62% less energy. Unlike legacy fixtures that require frequent relamping and generate excessive heat, this explosion proof LED operates for 150,000 hours with minimal maintenance requirements. From a cost standpoint, facilities eliminate the ongoing expense of metal halide bulb replacements while gaining instant-on capability and consistent light output throughout the fixture's extended lifespan.

Installation

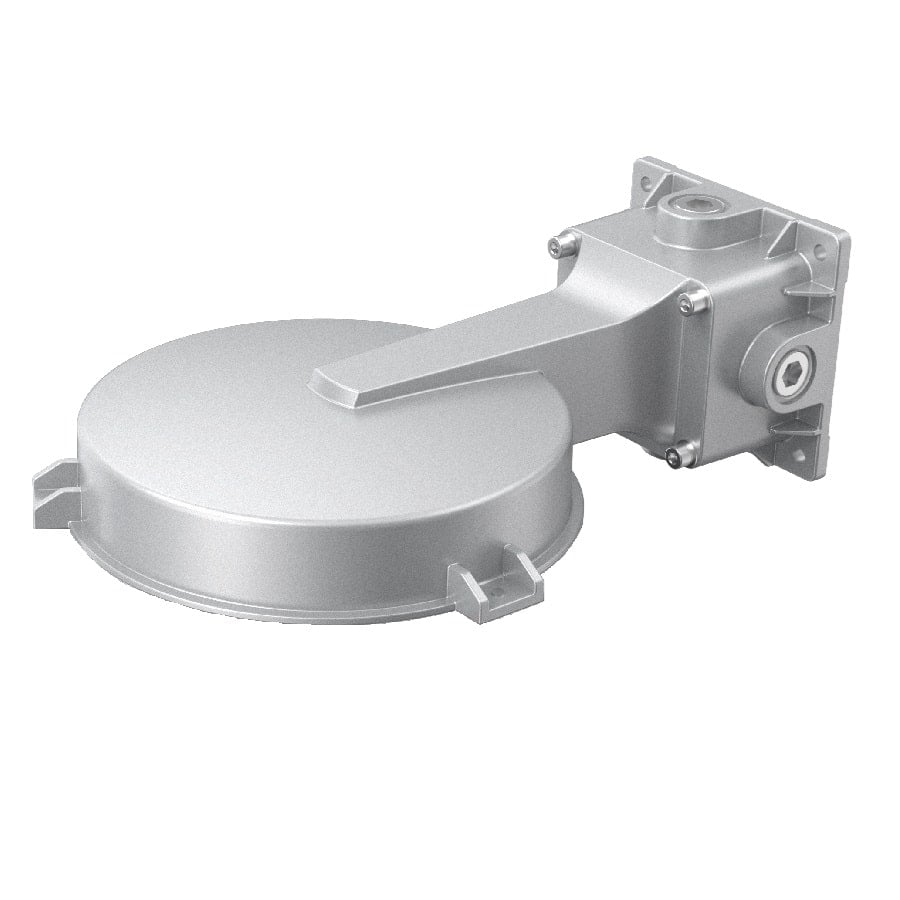

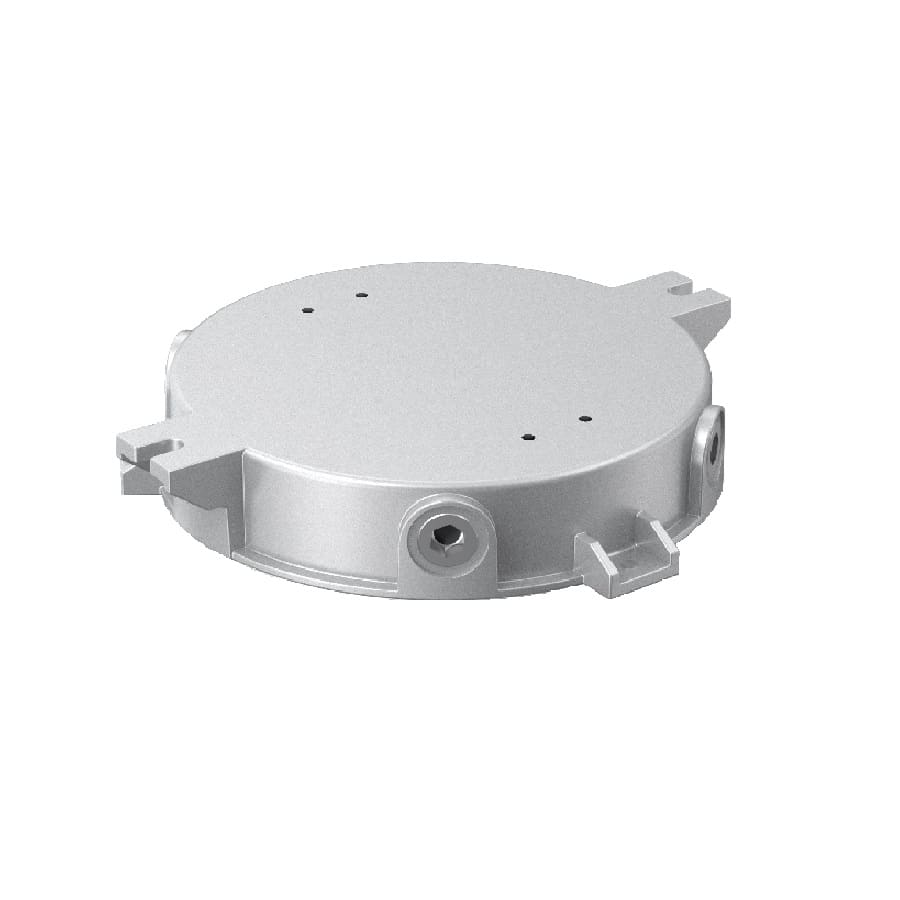

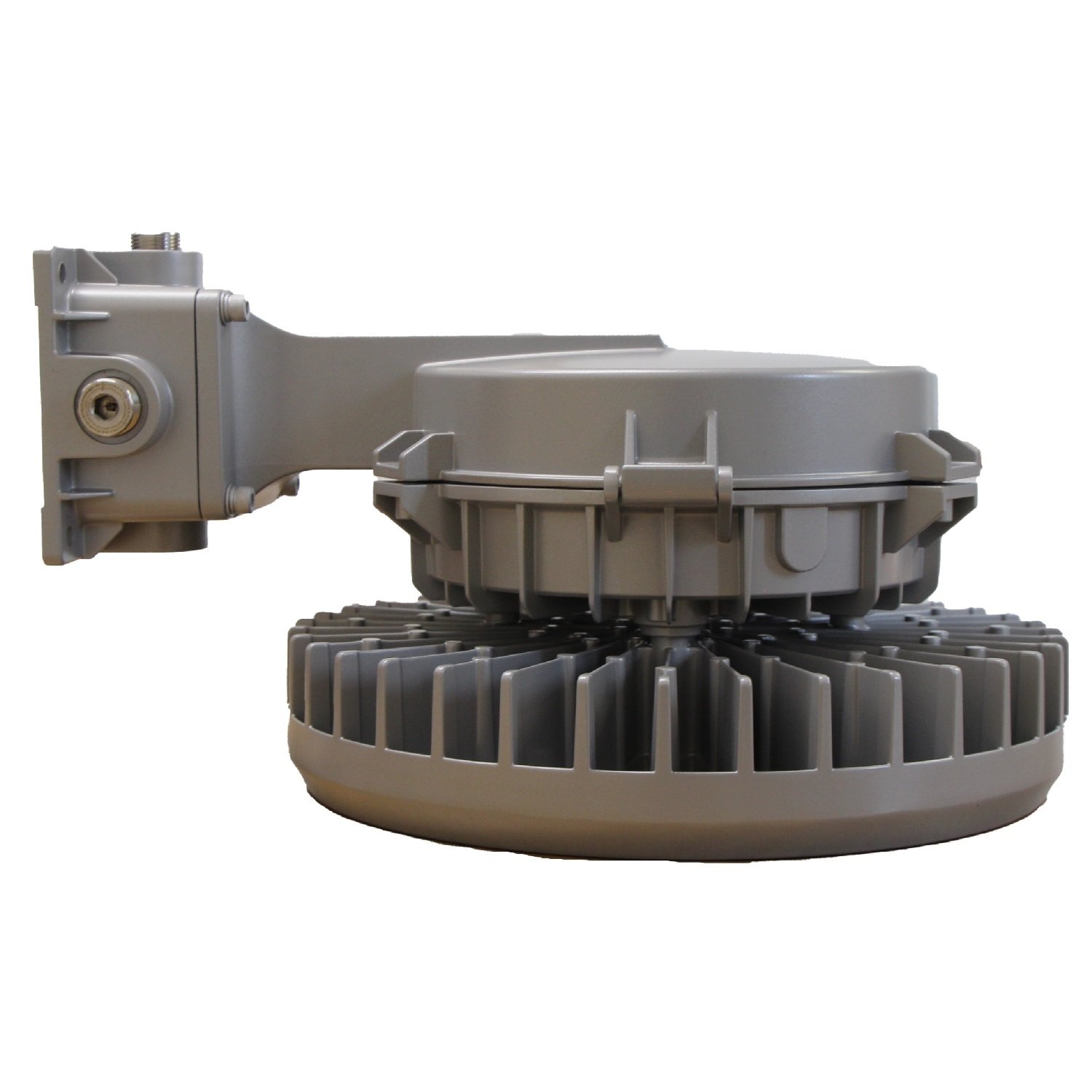

• Multiple mounting configurations including pendant, surface, wall, and trunnion options for flexible placement
• Universal 100-277V input voltage accommodates various electrical systems without additional transformers
• 1-10V dimming capability integrates with existing lighting control systems
• Compact 9.68-inch height and 14.96-inch diameter fits standard mounting locations
• 20-pound weight allows installation on most existing support structures

Certifications

• UL844 listed for wet locations meeting Class 1 Division 2 Groups A, B, C, D requirements
• Class 2 Division 1 and 2 certification covers Groups E, F, G hazardous environments
• Class 3 and Zone classifications including Zone 20, 21, and 22 compliance
• CSA, ATEX, and IECEX international certifications for global project compatibility
• Rebate eligible status helps offset initial investment costs through utility programs

Warranty & Support

• Standard 5-year manufacturer warranty covers components and performance
• Optional 10-year extended warranty available for long-term protection
• UL listing provides assurance of tested safety and performance standards
• Factory support includes technical assistance for specification and installation questions

Core Benefits

• Delivers 140 lumens per watt efficiency with 5000K daylight color temperature for enhanced visibility
• IP66 rating and IK10 impact resistance withstand harsh industrial environments
• Powder coated aluminum housing resists corrosion and maintains appearance over time
• 10kV surge protection safeguards against electrical disturbances
• Operates reliably in temperatures from -40°F to 149°F for extreme climate conditions
• 120-degree beam angle provides broad area coverage with tempered glass lens durability

Applications

For facilities that require certified explosion proof lighting, this fixture serves chemical processing plants, oil refineries, paint spray booths, and manufacturing environments with combustible dust or vapor concerns. In practice, the comprehensive hazardous location certifications make it suitable for Class 1 and Class 2 installations where flammable gases or combustible dust create safety risks.

• Petrochemical facilities and oil and gas processing equipment areas
• Paint spray booths and coating application facilities
• Grain handling and agricultural processing operations
• Chemical storage and mixing areas requiring Class 1 Division 2 lighting
• Manufacturing plants with combustible dust environments
• Marine and offshore platforms exposed to hazardous atmospheres
