100 Watt LED High Temperature Light | 13000 Lumens | 5000K | 100V-277V or 277-480V | Rated to 176F

High-Temperature Industrial LED Lighting Solution

Engineered to handle demanding conditions where extreme heat threatens lighting performance, this 100-watt LED fixture delivers 13,000 lumens of reliable illumination in environments reaching up to 176°F. Built with specialized die-cast aluminum construction and an oversized heat sink, this fixture maintains consistent light output where traditional lighting fails, while offering 130 lumens per watt efficiency across dual voltage options.

Suitable Environments

• Steel mills and foundries where metal processing generates intense heat
• Glass manufacturing facilities operating high-temperature furnaces
• Commercial kitchens and food processing plants with steam and heat exposure
• Chemical processing facilities requiring explosion-resistant lighting
• Power generation plants with turbine and boiler areas
• Automotive paint booths and curing ovens
• Petrochemical refineries with elevated ambient temperatures

Metal Halide Replacement Benefits

• Replaces 250-watt metal halide fixtures while consuming 60% less energy
• Eliminates warm-up time with instant-on 5000K daylight illumination
• Provides 100,000-hour lifespan compared to 15,000-hour metal halide bulbs
• Reduces maintenance costs by eliminating frequent lamp and ballast replacements
• Maintains consistent light output without the 40% lumen depreciation of metal halide
• Operates reliably in high-vibration environments with 3G vibration testing

Performance & Safety

From a cost standpoint, this fixture delivers exceptional value through its 130 lumens per watt efficiency and dual voltage compatibility across 100V-277V and 277V-480V systems. The high power factor of 0.95 ensures optimal electrical performance while minimizing harmonic distortion below 20%.

For facilities that require dependable visibility in hazardous conditions, the IP66 rating protects against dust ingress and high-pressure water jets, while IK10 impact resistance withstands mechanical stress. Additionally, 12kV surge protection safeguards the fixture from electrical transients common in industrial environments.

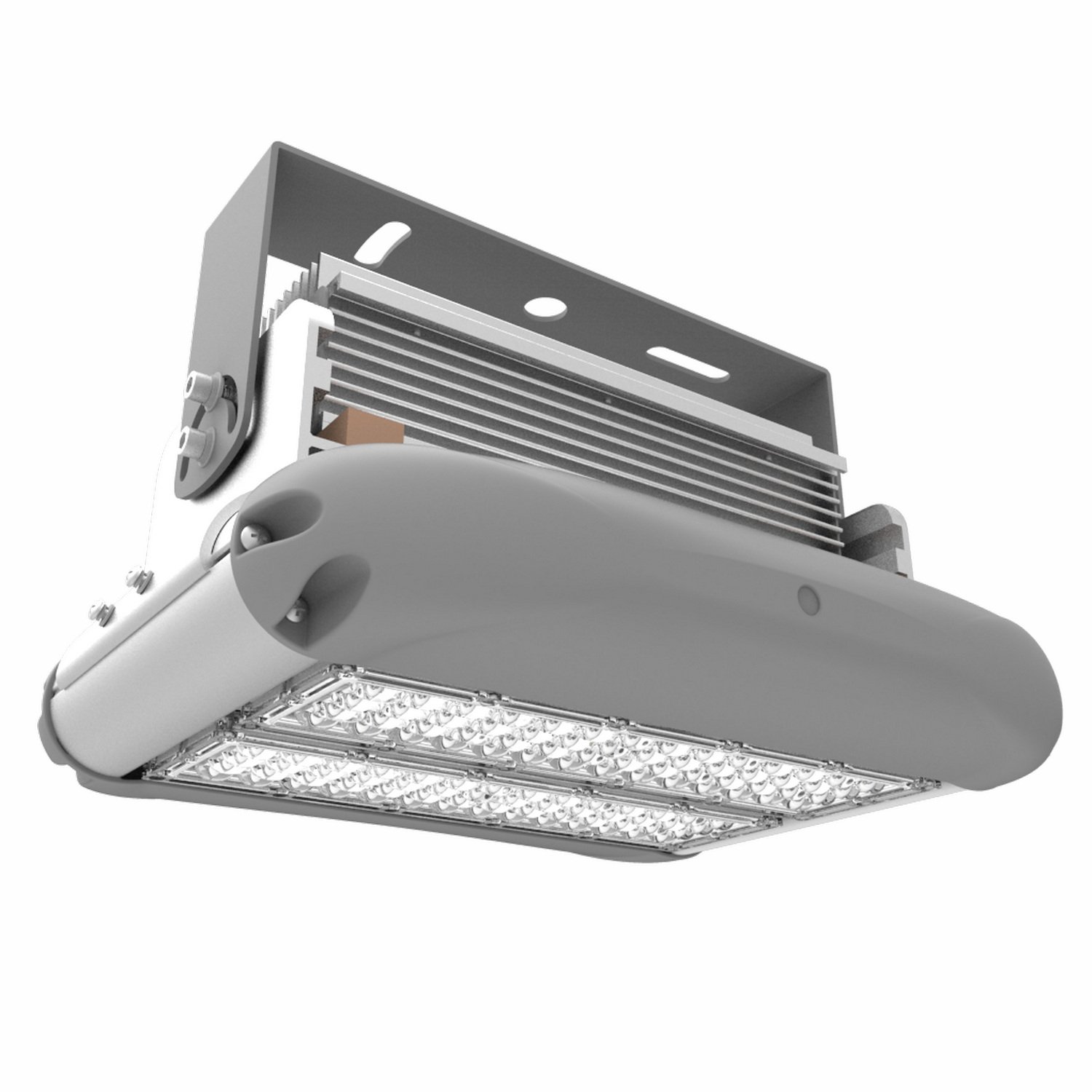

In real-world use, the 100,000-hour L70 lifespan significantly reduces maintenance interventions in hard-to-reach mounting locations. The polycarbonate lens system offers flexible beam angle options from 30° to 140°, allowing operators to customize light distribution for specific work areas without compromising the fixture's thermal management capabilities.

Setup & Mounting

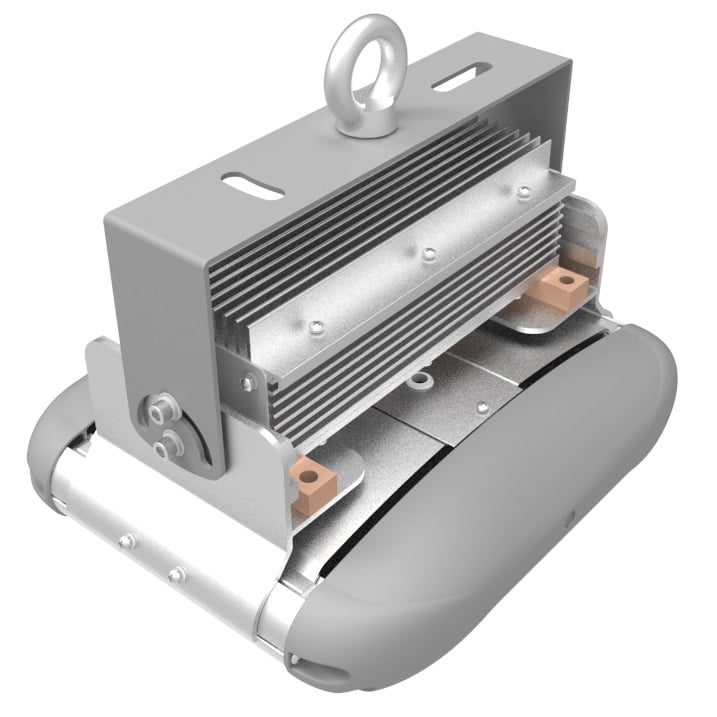

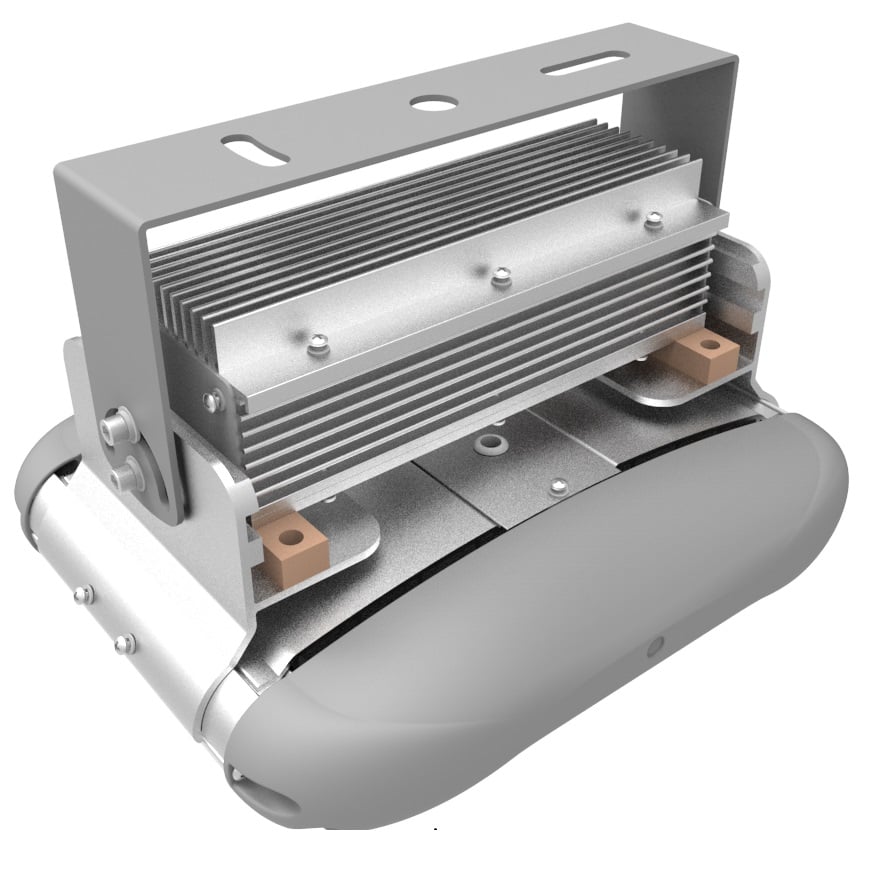

Installation flexibility comes through dual mounting options with both eye-hook and trunnion configurations accommodating various ceiling heights and structural requirements. The compact 12.1 in x 14.4 in x 9.6 in profile and 17.2-pound weight simplify handling during installation, while the gray finish integrates professionally with industrial settings. Beyond that, the wide operating temperature range from -40°F to 176°F eliminates concerns about seasonal temperature variations or process heat affecting fixture performance.

Certifications & Warranty

• ETL certification ensures compliance with North American safety standards
• IP66 ingress protection rating verified for dust-tight and water-resistant operation
• IK10 mechanical impact rating tested for maximum protection against physical damage

• 5-year manufacturer warranty covers fixture performance and component reliability
• 100,000-hour L70 lumen maintenance rating backed by comprehensive LED testing
• 3G vibration testing certification for demanding industrial environments
